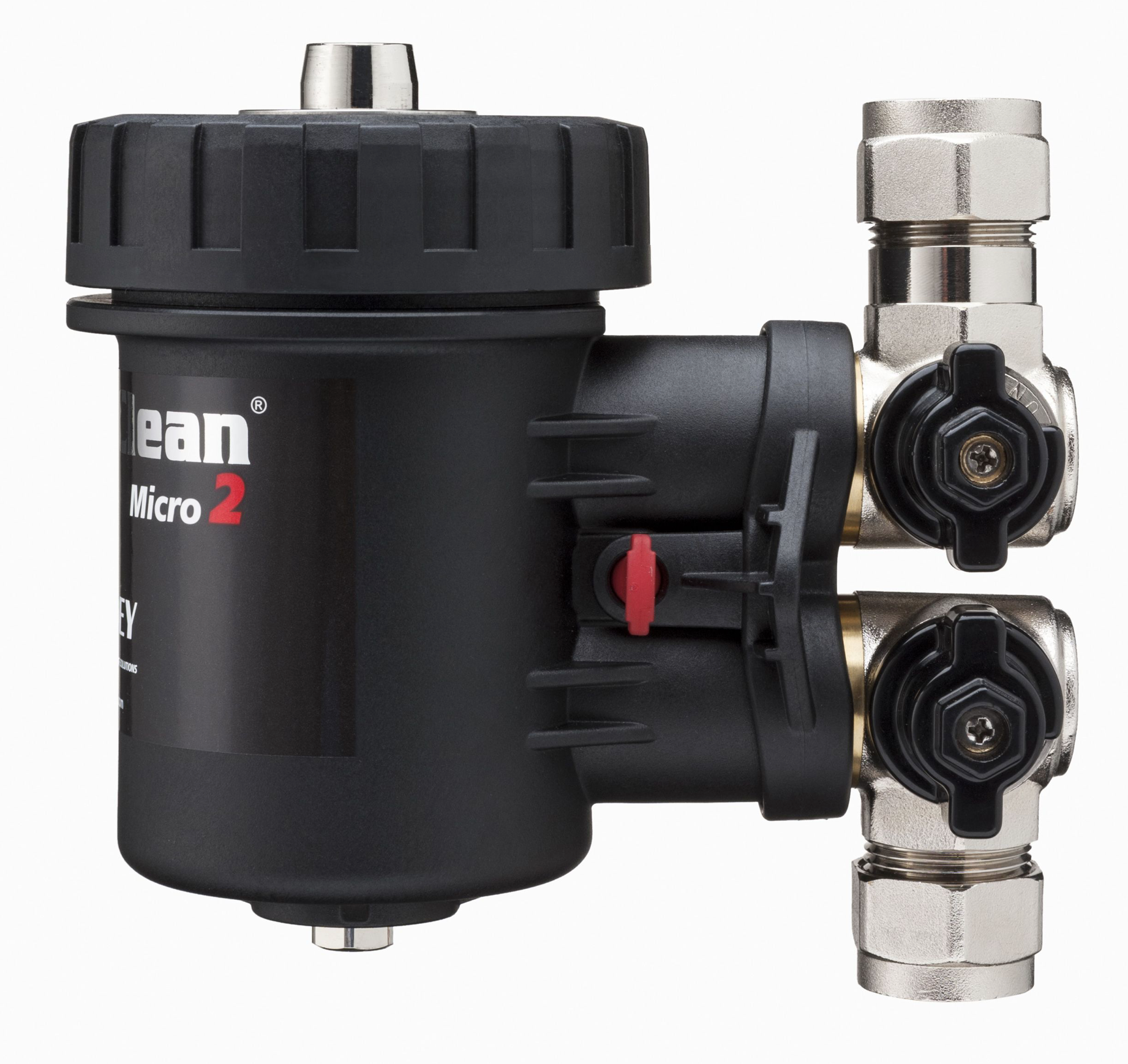

Adey Magnaclean Micro2 - 22mm Magnetic Filter
Adey Magnaclean Micro2 - 22mm Magnetic Filter
SKU:ZAP5572
- Free Delivery on orders over £100
Regular price
£87.50
Regular price
Sale price
£87.50
Unit price
/
per
Couldn't load pickup availability
Micro2 is the smallest of ADEY's MagnaClean filters and can be fitted in the tightest of spaces as the height required for servicing is the smallest in the industry. The Micro 2 might be small but it is perfectly formed and incredibly powerful.
Read more
Read more
The Micro2 is designed for smaller central heating systems for example in apartments, flats or small bungalows. Your heating engineer will always recommend the best MagnaClean filter for your central heating system.
- Smallest installation and servicing height in the industry
- 10-year parts warranty if registered within 30 days of installation
- In-line installation - Possible in a couple of minutes
- High performance compact filter - Ideal for tight spaces
- Multiple installation options
- Low profile drain valve - Easier servicing and dosing
- Improved valves - Greater reliability
- Dual non-magnetic debris chambers
- Twin reverse flow - Maximising debris capture
- Speed-fit connectors - Faster servicing
- High performance seals
Just as the MagnaClean Professional2 does, the MagnaClean Micro2 filter also provides exceptional heating system protection.
Installer Benefits
- High-performance, compact filter
- Captures magnetic and non-magnetic debris
- Ultra-thin sheath enhances magnetite capture
- In-line installation can be completed in just two minutes
- 360° rotational valves providing multiple installation options
- Bi-directional flow means either port can be an inlet, increasing flexibility
- Removable sheath makes servicing quick and easy
- Chemicals can be easily dosed directly into the canister
- Low-profile drain valve designed for easier servicing
Homeowner benefits
- Estimated 7% annual saving on heating bills
- Immediate ongoing boiler protection
- Extends the life of the central heating system
- Reduced carbon emissions
Warranty
Warranty
10 year(s)
Specs
Specs
| Canister and Lid | |
|---|---|
| Material | Glass reinforced nylon |
| Fluid capacity | 250 ml |
| Inlet diameter | 22mm at valve |
| Outlet diameter | 22mm at valve |
| Thread | Pressure thread |
| Flow configuration | Bi-directional – either port can be inlet |
| Main lid seal | EPDM |
| Valve to canister | EPDM |
| Drain Port | |
| Drain plug material | Nickel-plated brass |
| Drain plug thread | M8 |
| Seals | EPDM |
| Seal Valves | |
| Body material | Nickel-plated brass |
| Seal material | Long-life PTFE ball seals |
| O ring material | EPDM 70 seals |
| Valve inlet/outlet | 22 mm |
| Material | |
| Weight | 1.87 kg |
| Finish/colour | Black |
| Magnet | |
| Housing | Stainless steel |
| Length | 97.5 mm |
| Diameter | 19 mm |
| Bleed Valve | |
| Body material | Nickel-plated brass |
| Screw | Nickel-plated brass |
| Thread interface | M6 |
| Seals | EPDM |
| Size/dimensions (product installation) | |
| Height | 151 mm |
| Width at lid | 98 mm |
| Distance between filter centre & valve centre | 100 mm |
