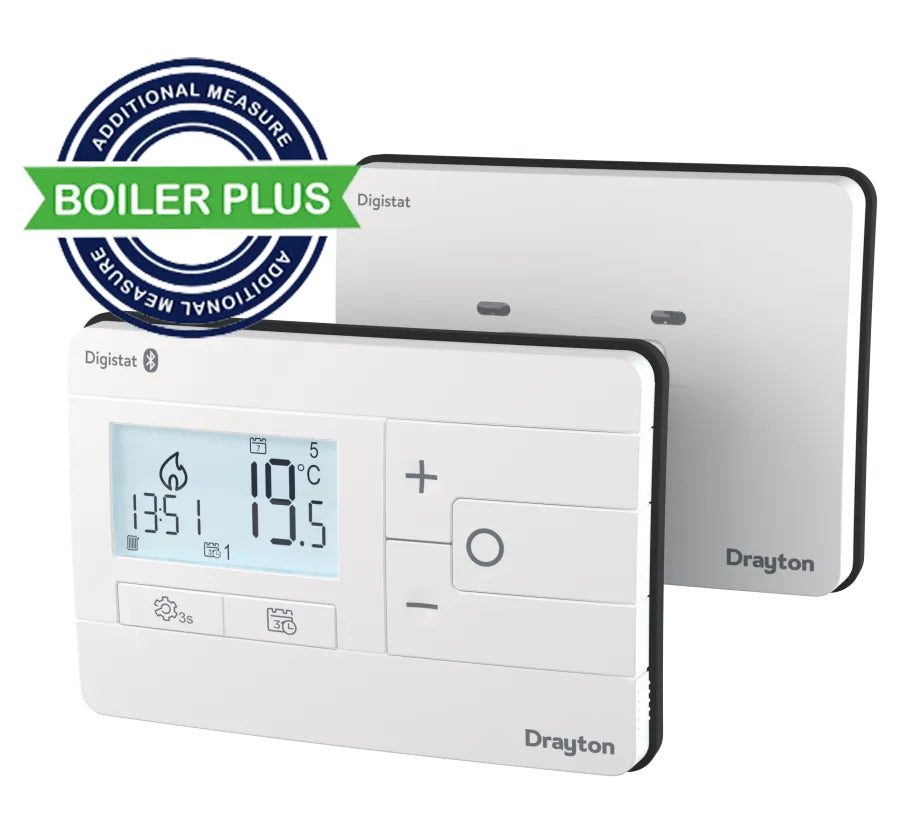

Drayton RF902 Digistat - Dual Channel RF Programmable Room Thermostat With Opentherm

SKU:ZAP79588

Free Delivery on orders over £100

£49.00

Sale Sold out

Taxes included.

Quantity

Drayton's Digistat RF902 dual-channel can be used for heating and hot water or for two separate heating zones (using a second Digistat RF90T), without the need for a separate hot water programmer

It provides unparalleled flexibility with universal operation and optional smartphone control.

Programme using the app via Bluetooth connection (no Wi-Fi needed) or manual control via the thermostat
Familiar Digistat features and operation
Universal programming: 7 day, 5/2 day, 24 hour or simple room thermostat
Optimised settings for gas, heat pump and oil
Receiver fits on industry-standard wallplate
3A relay output
Optional Service Interval feature.

Warranty

1 year(s)

Specs

Part number	RF902 Digistat Dual-Channel RF; RF90D Digistat Dual-channel Receiver Spare; RF90T Digistat RF Thermostat Spare
Power supply	Digistat: 2 X AA 1.5V alkaline batteries; Receiver: 230VAC +/-10%, 50Hz
Switch type and rating	Digistat: N/A; Receiver: 3(1)A 230V/50Hz
Min. recommended current	Digistat: N/A; Receiver: SPDT 10mA@24VAC (inductive)
Ambient temperature	Digistat: Operating 0°C to 40°C Storage - 20°C to 65°C; Receiver: Operating 0°C to 45°C Storage - 20°C to 65°C
Ambient humidity (non condensing)	Operating 20% to 80% 90% non condensing
Temperature setting range	5°C to 30°C
Rated impulse voltage	4KV
Ball pressure test	75°C
Disconnection means	1B
Automatic action	Digistat: N/A; Receiver: 100,000 cycles
Operating frequency (Bluetooth)	Digistat: 2402-2480 MHz; Receiver: N/A
Max RF Power transmitted (Bluetooth)	Digistat: 2402-2480 MHz; Receiver: N/A
Pollution degree	2
Protection level	IP30
Radio frequency	433.92 MHz
Radio signal range	50m typically The range may be affected by the composition / density and number of walls between the thermostat and receiver
Wiring	Designed for fixed wiring only, to comply with IET wiring regulations
Dimensions	Digistat: 90x135x31mm (HxWxD); Receiver: 94x122x31mm (HxWxD)
Energy Class	Digistat: N/A; Receiver: IV = 2%
Relevant EC directives	2014/53/EU Radio Equipment Directive 2012/19/EU WEEE 2011/65/EU RoHS Directive
Applied standards	EN60730-1 EN 60730-2-7 EN 60730-2-9 ESTI EN 300 328 ESTI EN 301 489 EN IEC 63000 EN15500
App system requirements	Android™ Version 9 or higher \| Apple® iOS 12 or higher \| Bluetooth version 4.2 or higher
Sustainable offer status	Green Premium Product
