Ideal Vogue MAX Combi Boiler With Ideal System Filter

Ideal Vogue MAX Combi Boiler With Ideal System Filter

ZAP74203

  • £25 delivery (excl VAT) or free pickup in store
£1,244.46
£1,244.46
Sale Sold out
Size

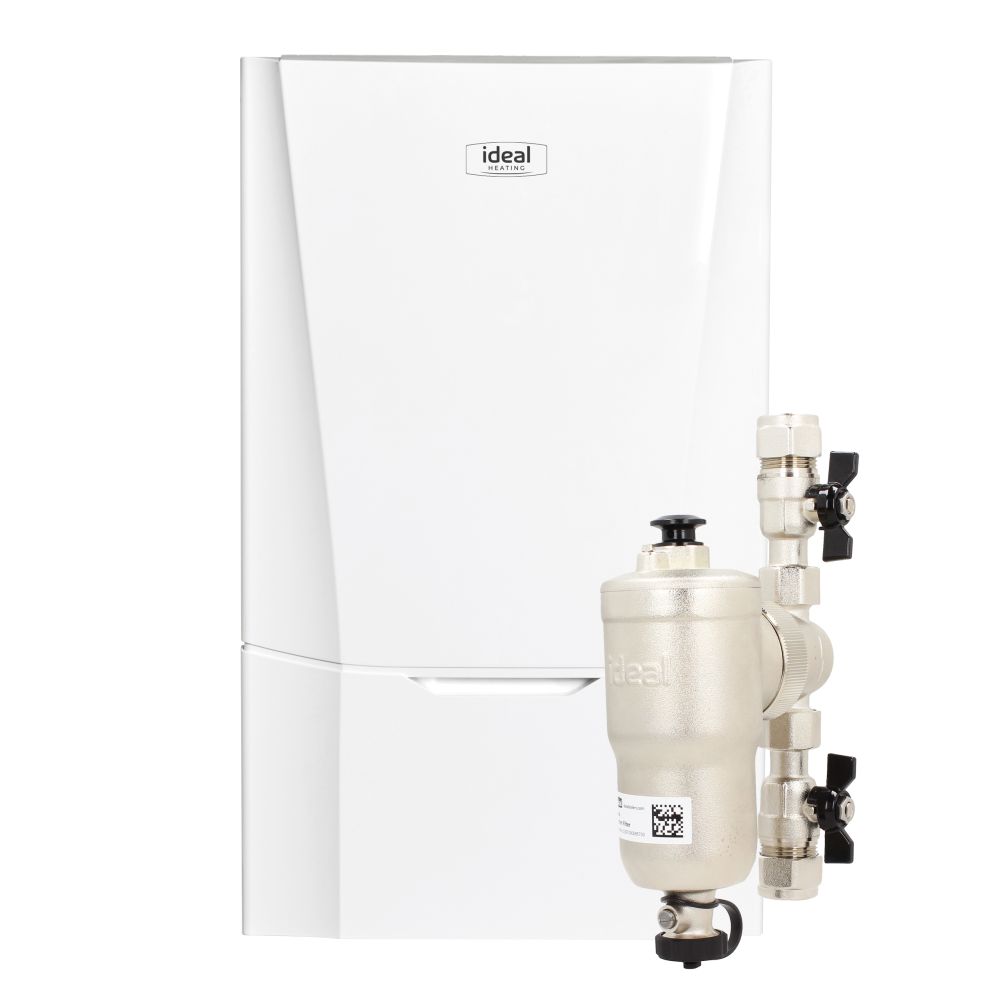

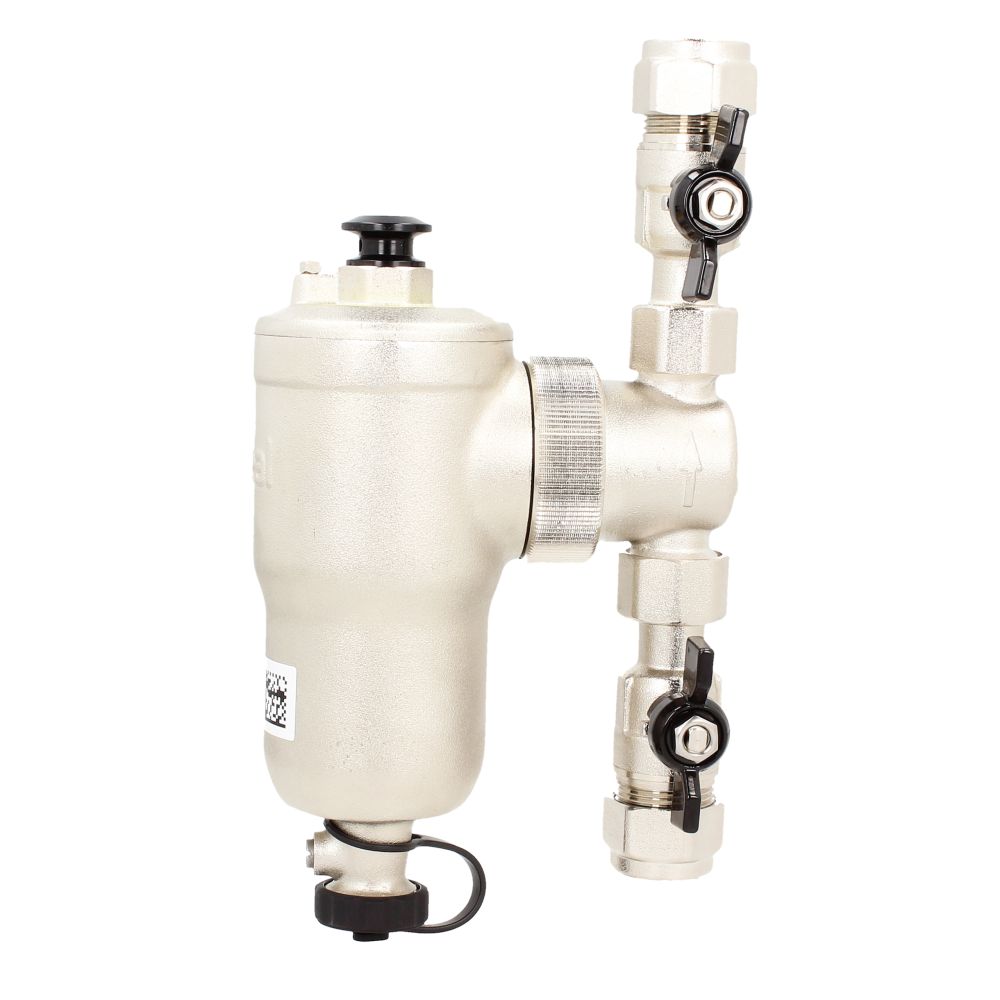

The Ideal Vogue Max combi is the same boiler as the Ideal Vogue Gen2 combi with the addition of an Ideal System Filter within the packaging and a longer warranty.

A unique boiler innovation combining modern technology with quality components to bring the next step in domestic heating intelligence.

This stylish boiler delivers premium performance, reliability and value for money. It is also one of the quietest boilers available thanks to its fully insulated casing.

Read more

Features

  • Made in the UK
  • Service timer with telephone number display / service display
  • Built using premium components
  • 10 years warranty or
  • 12 years warranty when installed and serviced by a Max Accredited installer.
  • Quick installation – single piece unit & low lift weight
  • Full text support for fault modes
  • Premium product using best components available

What's new in the Ideal Vogue GEN2/MAX?

Warranty

12 year(s)

Specs

C26
 C32
 C40
Weight (packaged) kg
 41.1
 41.4
 43.4
Max installation weight kg
 32.4
 33.8 35.4
CH output (kW) min/max @ 70°C
 3.7 - 18.0
 4.6 - 26.0
 5.7 - 32.0
CH output (kW) min/max @ 40°C
 4.0 - 19.3
 4.9 - 27.9
 6.1 - 34.3
DHW output (kW) max
 26
 32
 40
DHW flow rate I/min. 35°C rise
 10.6 13.1
 16.4
SEDBUK rating (2005) %
 91
 91.1
 91
SEDBUK rating (2009/2012) %
 89.1
 89.2
 89.1
NOx classification
 CLASS 6
 CLASS 6
 CLASS 6
Convertible to LPG
 Yes
 Yes
 Yes
Max horizontal flue
 10m
 8m 8m
Max vertical flue
 10m
 10m 10m
Condensing boiler
 Yes
 Yes Yes
Seasonal space heating energy efficiency ŋs%
 92.7 93.1
 93
Sound powr level, indoors Lwa dB
 47
 50
 49
Water heating energy efficiency class
 A
 A
 A

Files

Ideal Vogue MAX Combi Boiler Installation Manual
