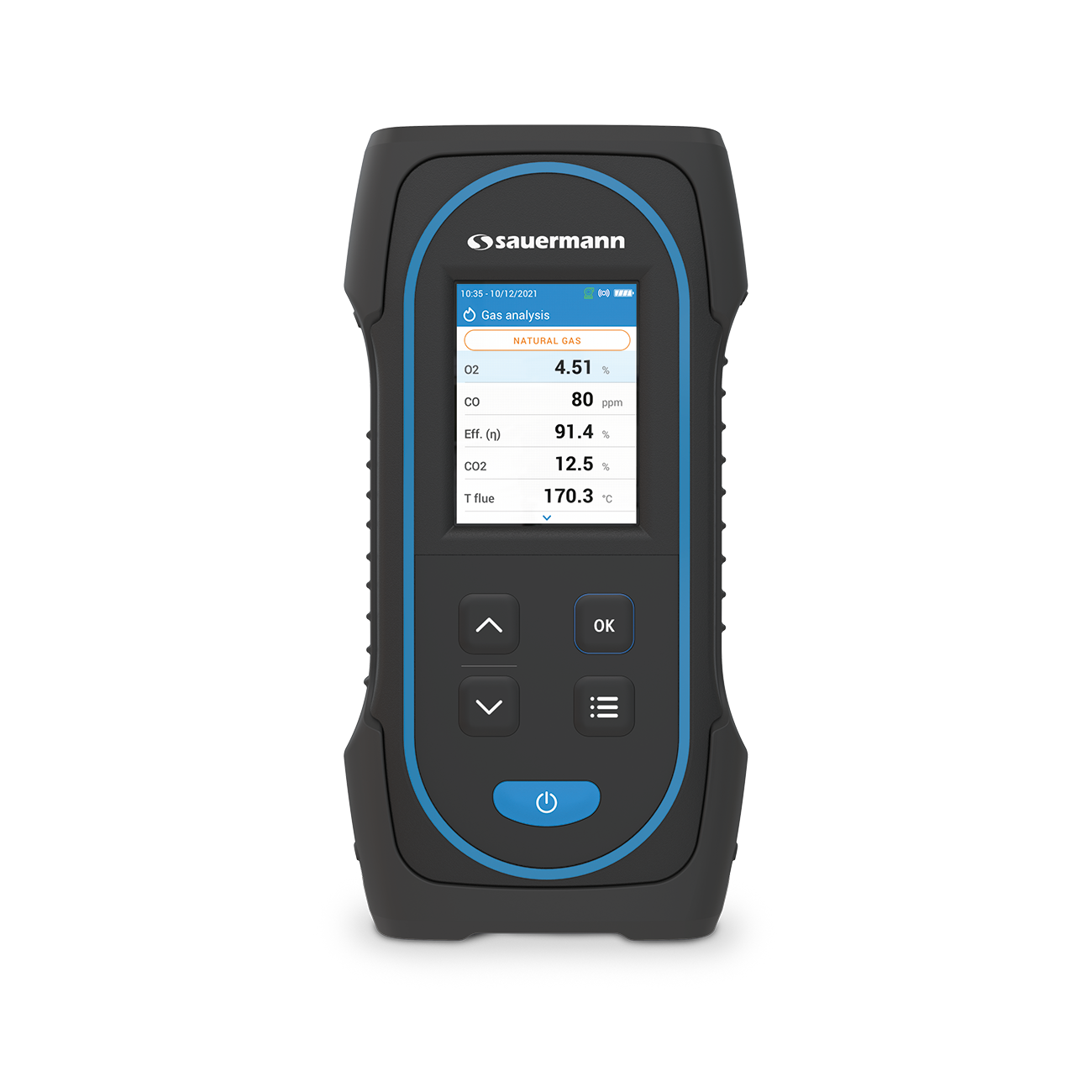

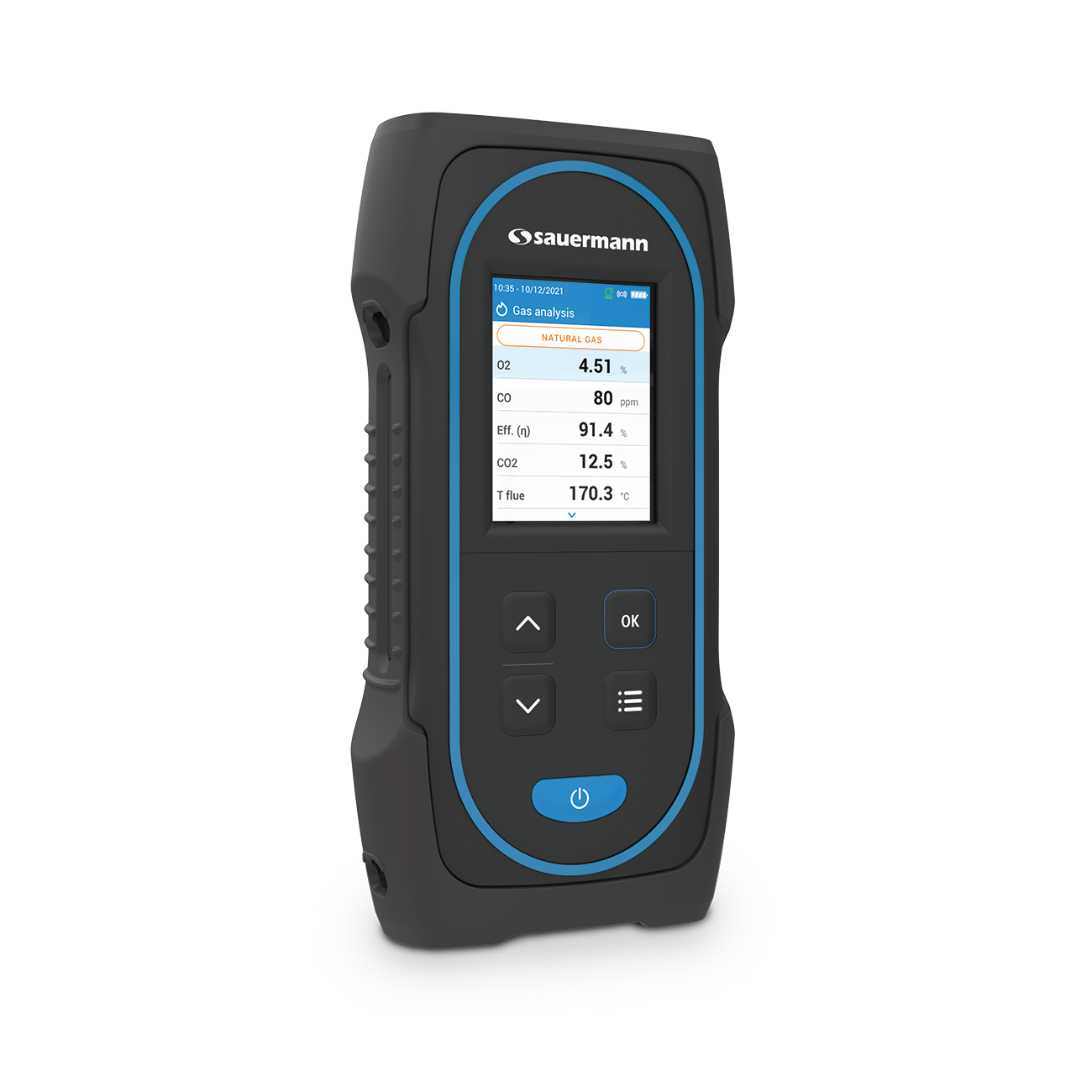

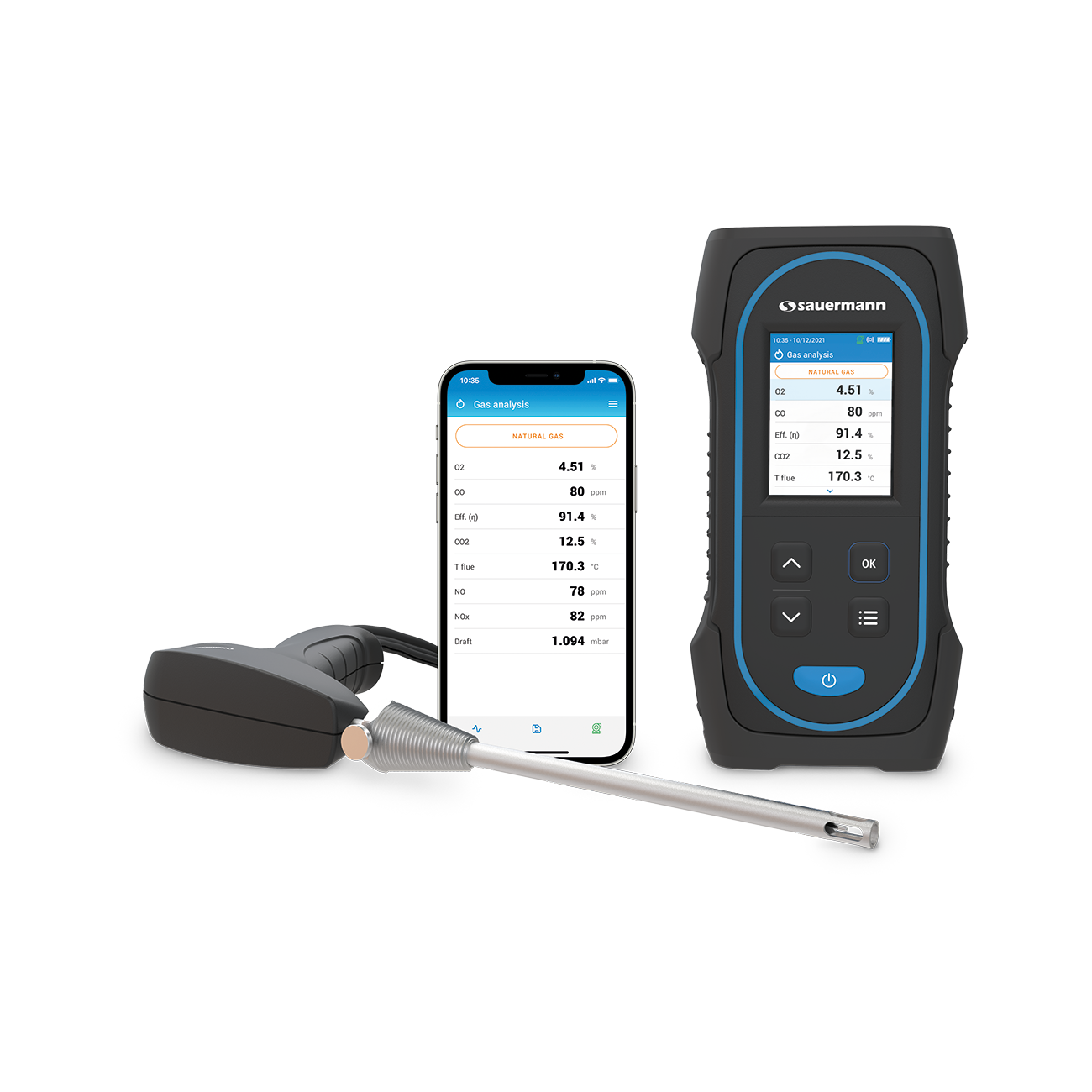

Sauermann Si-CA 030 Flue Gas Analyser With Probe
Sauermann Si-CA 030 Flue Gas Analyser With Probe
SKU:SMSICA030KIT2AC
- Free delivery on orders over £100
Couldn't load pickup availability
All the kits come supplied with:
- Si-CA 030 analyzer
- O2 gas sensor
- CO gas sensor
- Protective rubber holster
- Magnetic support
- 180mm flue gas probe with dual hose OR 300mm probe
- Water trap with filter
- AC power supply / charger
- USB cable

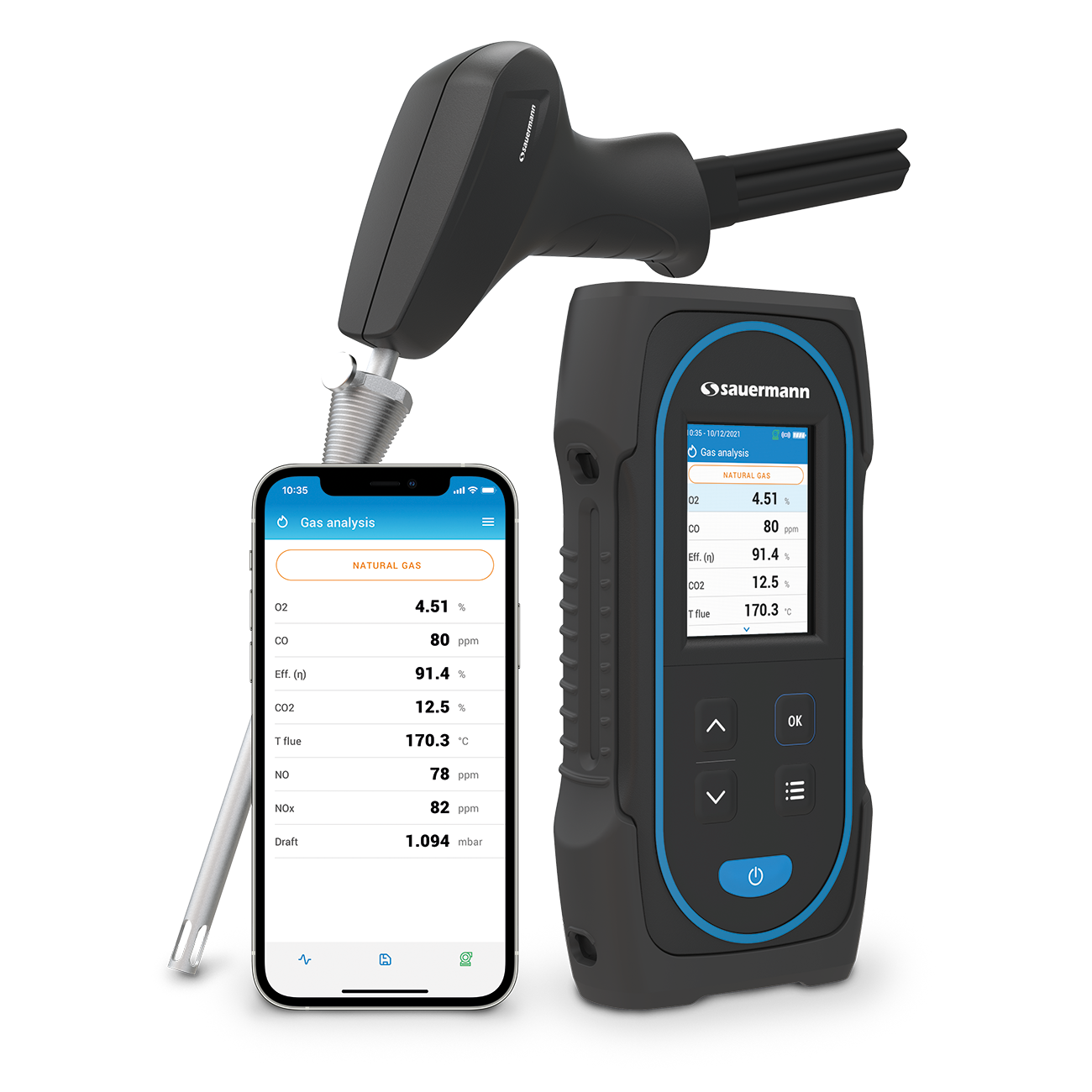

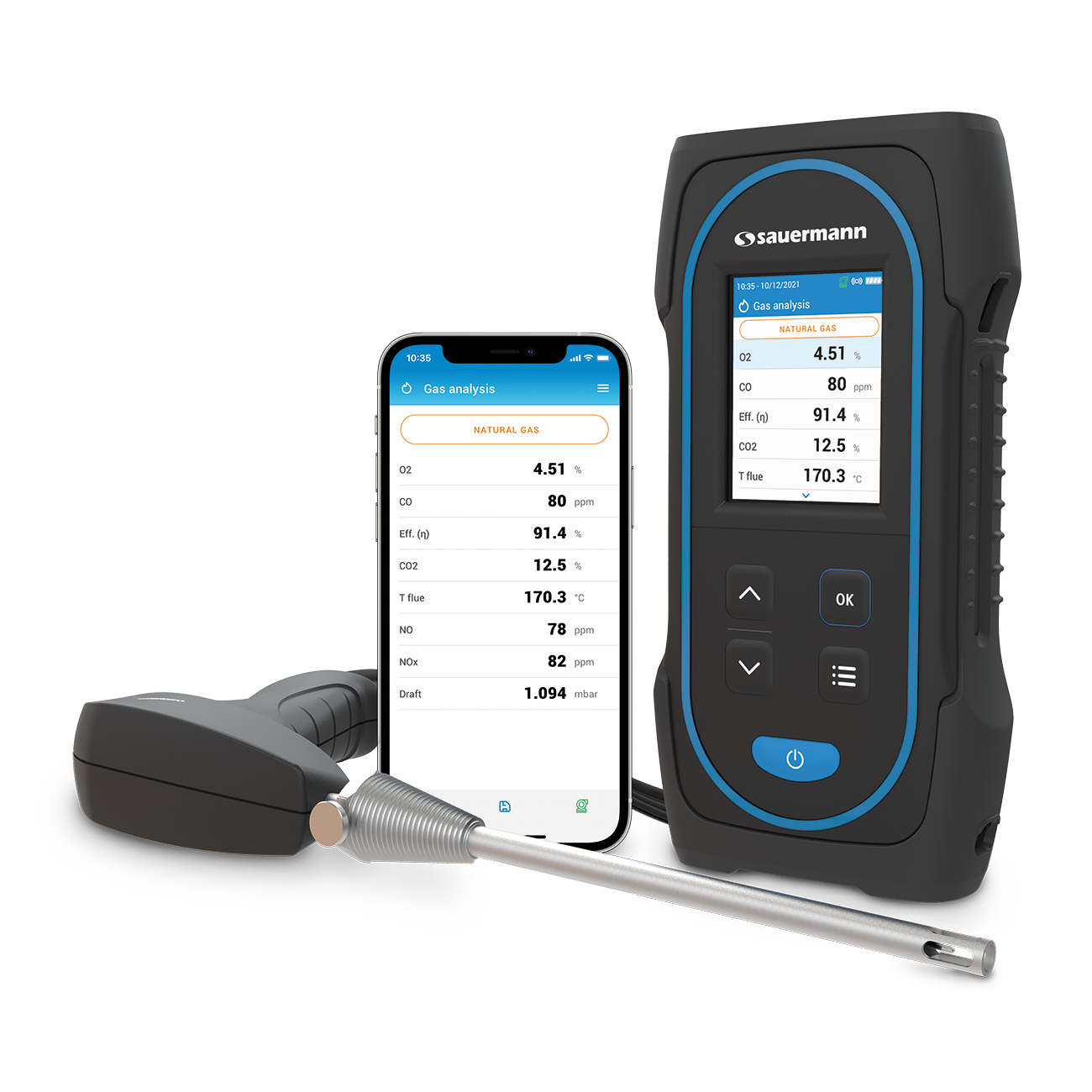

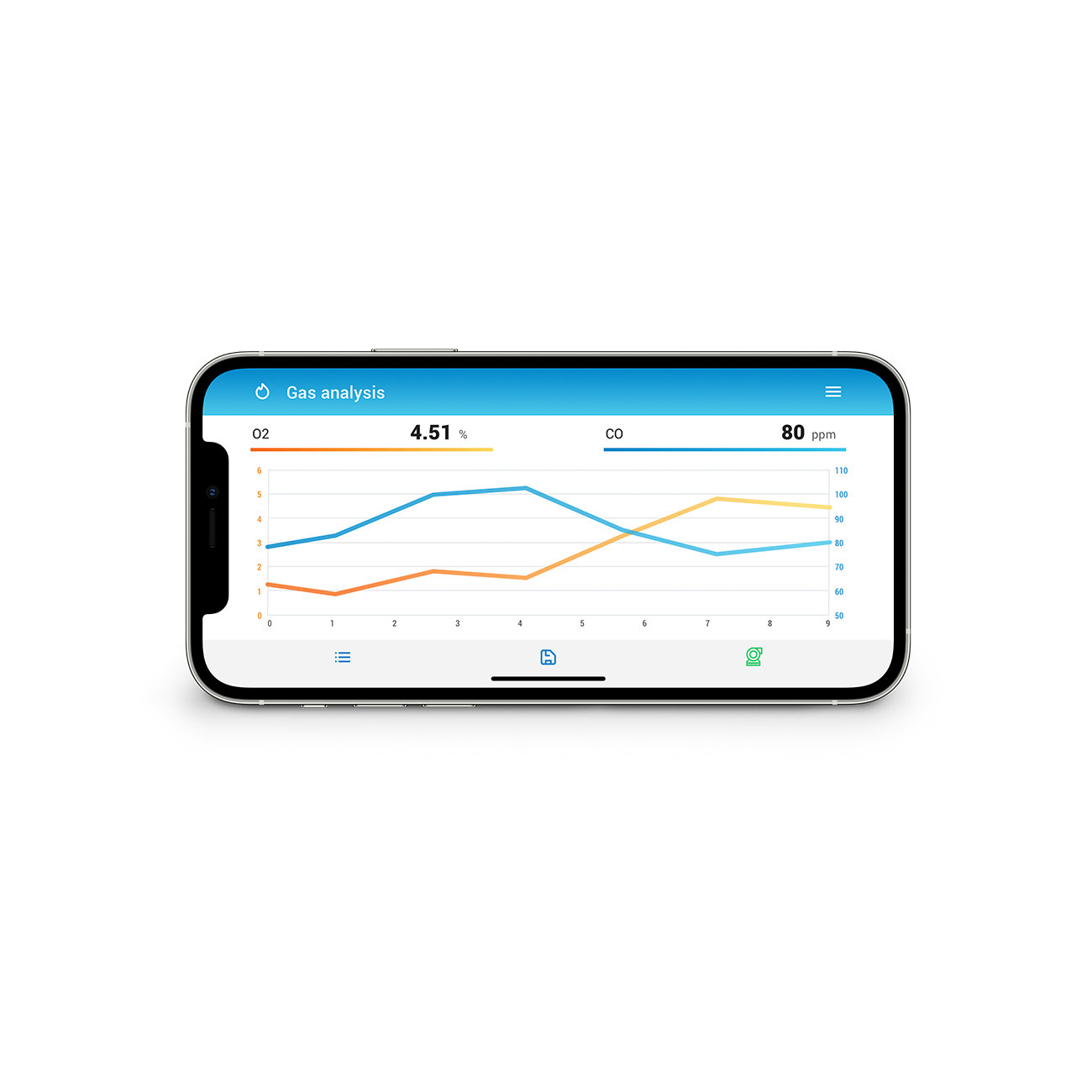

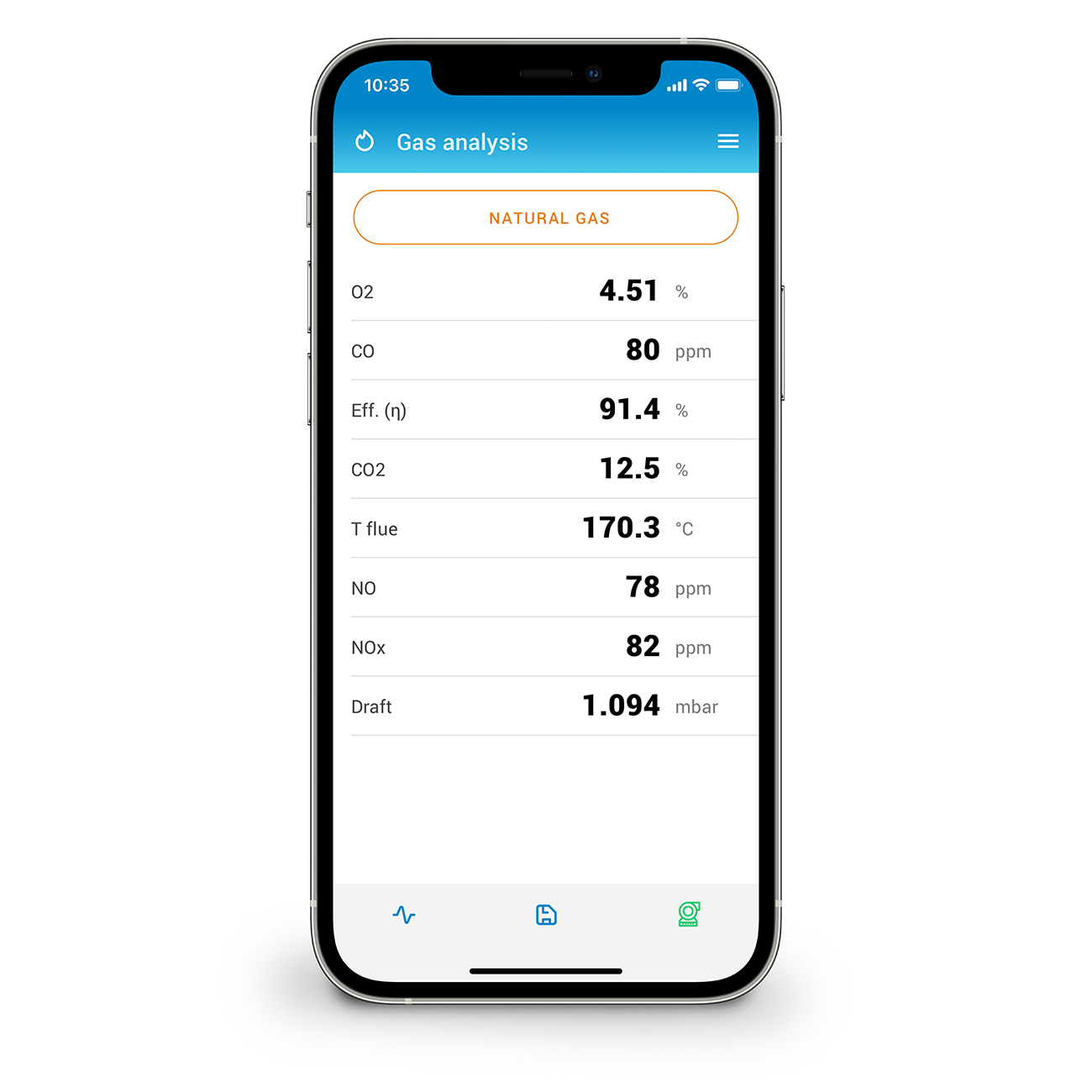

- Mobile app
- Internal Bluetooth wireless communication module
- Quick Start Guide
- Calibration certificate
Read more
Read more

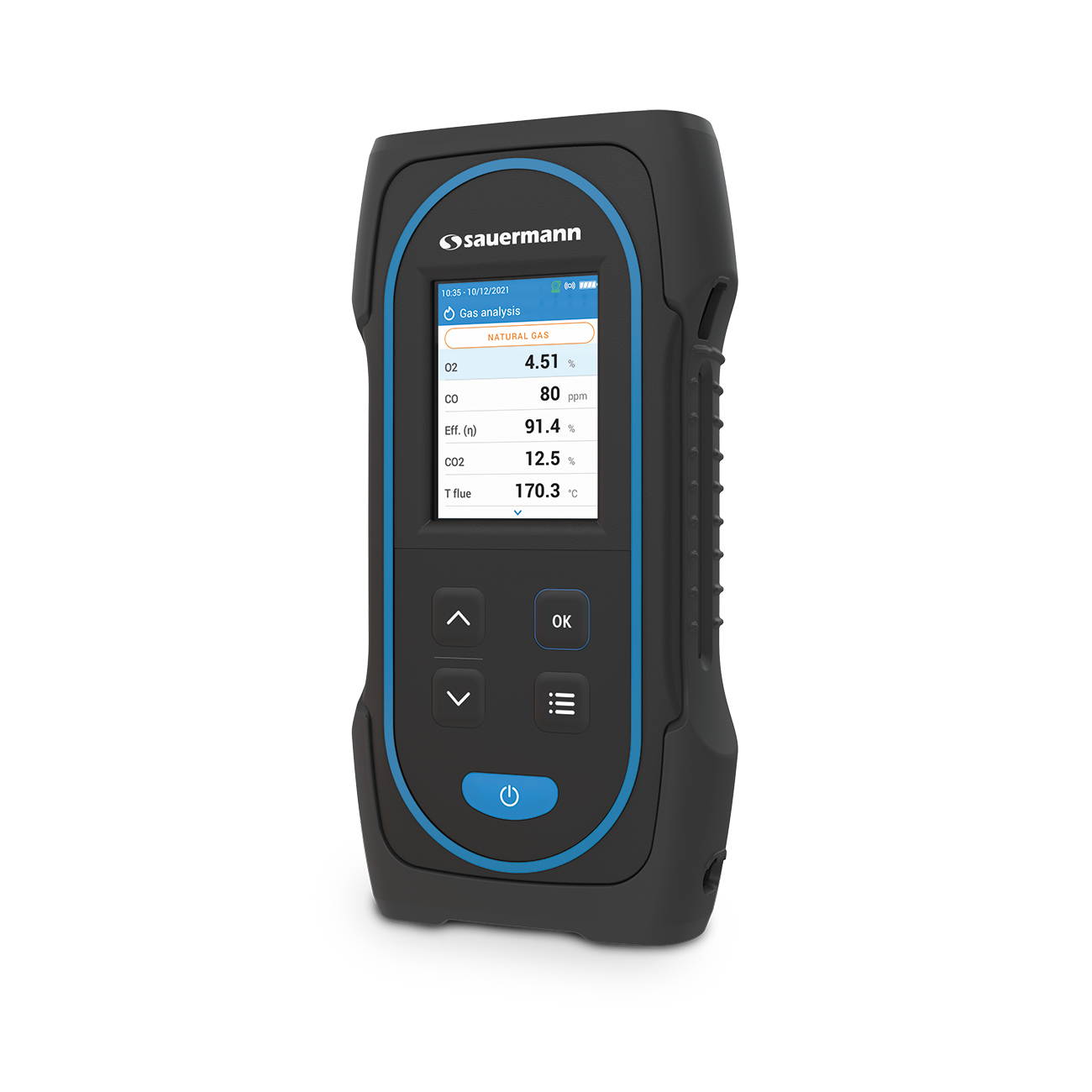

The Si-CA 030 is the entry-level combustion gas analyser from Sauermann. It comes in a full colour screen with in-built wireless connection to a smartphone or tablet to enable automatic generation of reports and certificates.
It can measure up to 8,000 ppm CO and incorporates an auto pump cut-off for high CO levels.
The flue gas analyser offers differential pressure measurements and can be used for tightness tests. However, the flexible hose is not provided in the basic kit and will need to be purchased separately. It does come as standard in either of the 2 kits containing the vinyl carrying case.
This FGA is able to estimate and display the remaining sensor life. This means that during the annual calibration, there is no fixed year when the sensors need to be changed. They get changed when they reach end of life. The less you use your FGA, the longer the sensors will last.
Annual calibration fees
Annual calibration fees
Warranty
Warranty
Specs
Specs
Si-CA 030 Product Specifications |
|
|---|---|
| Manufacturer's SKU | SICA 030 KIT 2AC |
| Measuring ranges | |
| O2 | 0.00 % ... 25.00 % |
| CO | 0.00 ppm ... 8000.00 ppm |
| CO2 | 0.00 % ... 99.90 % |
| Flue temperature | -20.00 °C ... 1250.00 °C |
| Air temperature | -20.00 °C ... 120.00 °C |
| Differential temperature | 0.00 °C ... 1250.00 °C |
| Pressure/Draft | -200.00 mbar ... 200.00 mbar |
| Excess air | 0.00 % ... 999.00 % |
| Efficiency | 0.00 % ... 100.00 % |
| Efficiency (condensation) | 0.00 % ... 125.00 % |
| Technical details | |
| Parameters | CO, CO₂,O₂ |
| Displays | Color graphical display |
| IP Protection | IP 42 |
| Battery life | 8 hours |
| Standards | 2015/863 EU (RoHS 3) |
| NF EN 50379-3 | |
| TÜV SÜD Certification | |
| UKCA | |
| NF EN 50379-1 | |
| 2014/53/EU RED | |
| Wireless connection | 1 |
| Power supply | Rechargeable battery, Li-Ion 5100 mA/h 3.6 V |
| USB | Yes |
| Sensors | CO, CO₂,O₂ |
| Auto zero | Yes |
| Printer | Remote |
| Sensor protection | Sensor protection by pump stopping |
| Mobile application | Yes |
| Instrument Dimensions | |
| Length | 99 mm |
| Width | 49 mm |
| Height | 194 mm |
| Weight | 350 g |
| Operating temperature | |
| Min | -5.00 °C |
| Max | 45.00 °C |
