Sauermann Si-CA 130 Touch Screen Flue Gas Analyser
Sauermann Si-CA 130 Touch Screen Flue Gas Analyser
SKU:SMSICA130KIT2AS
- Free delivery on orders over £100
Couldn't load pickup availability
All the kits come supplied with:
- Si-CA 130 analyzer
- O2 gas sensor
- CO gas sensor
- Protective rubber holster
- Magnetic support
- Standard 180 mm flue gas probe with dual hose (or 180 mm flexible probe or 300 mm probe depending on selected kit)
- Water trap with filter
- Flexible hose for pressure measurements
- AC power supply / charger
- USB cable
- Mobile app
- Internal Bluetooth wireless communication module
- Quick Start Guide
- Calibration certificate
- Vinyl carrying case
NOx sensor is kit-specific.
Read more
Read more

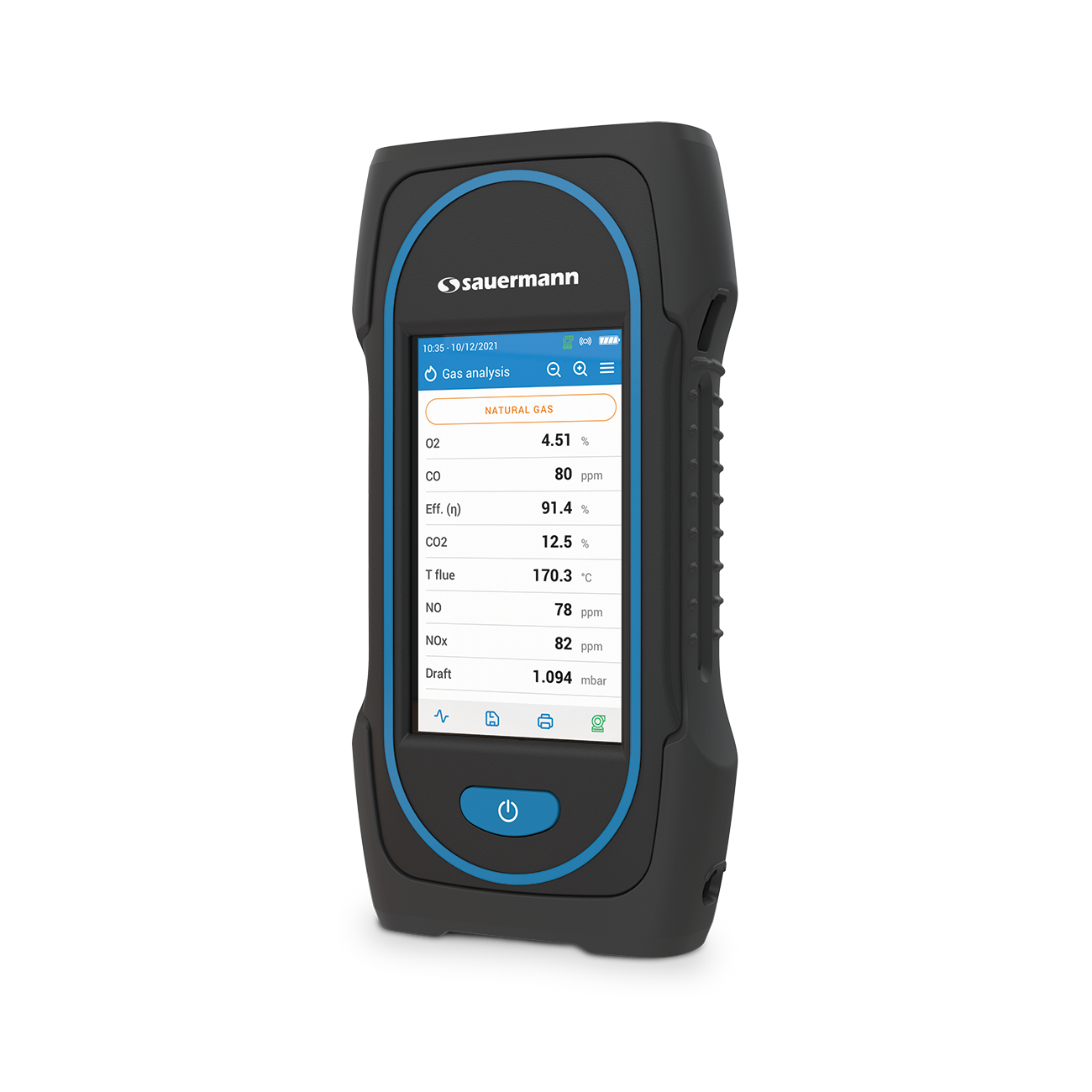

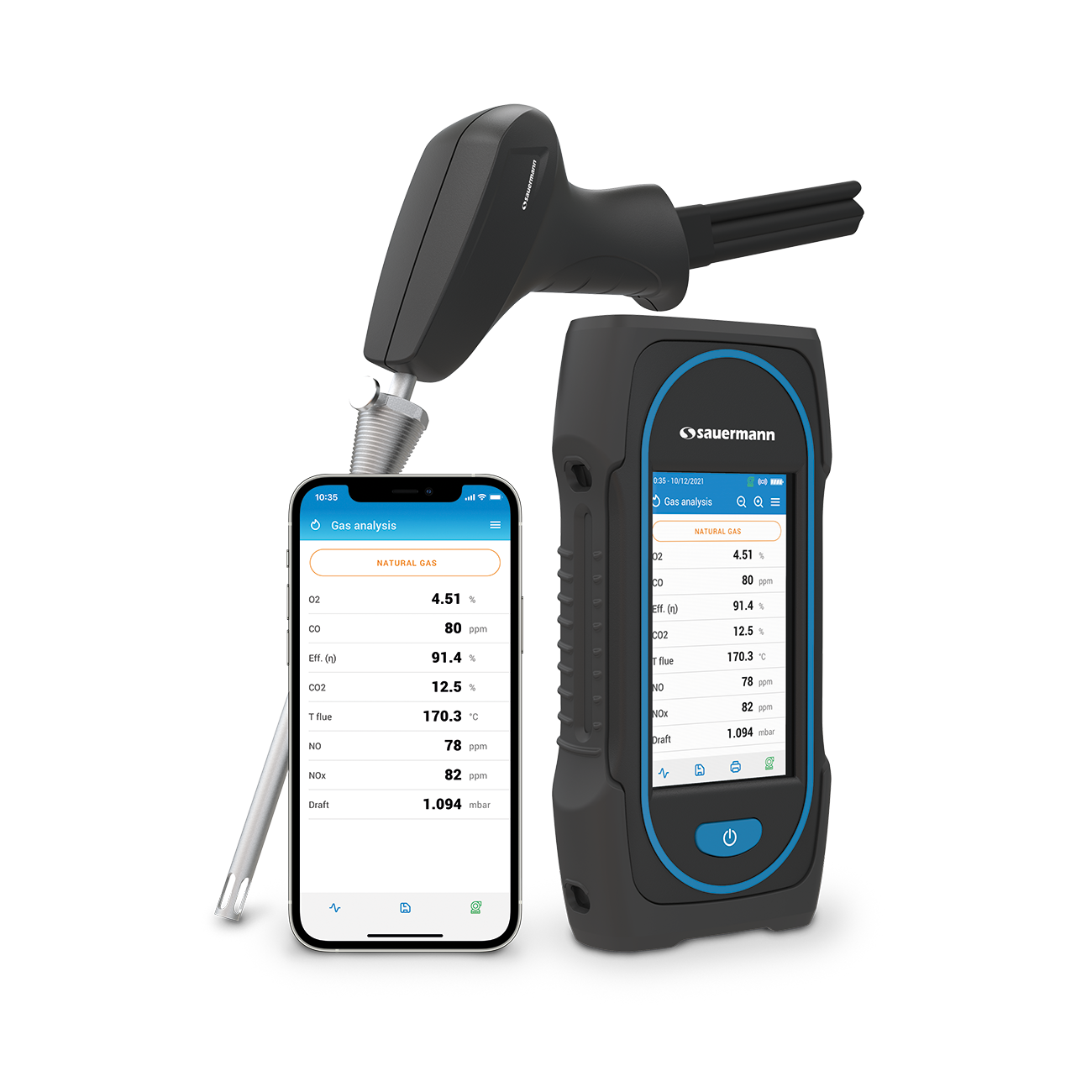

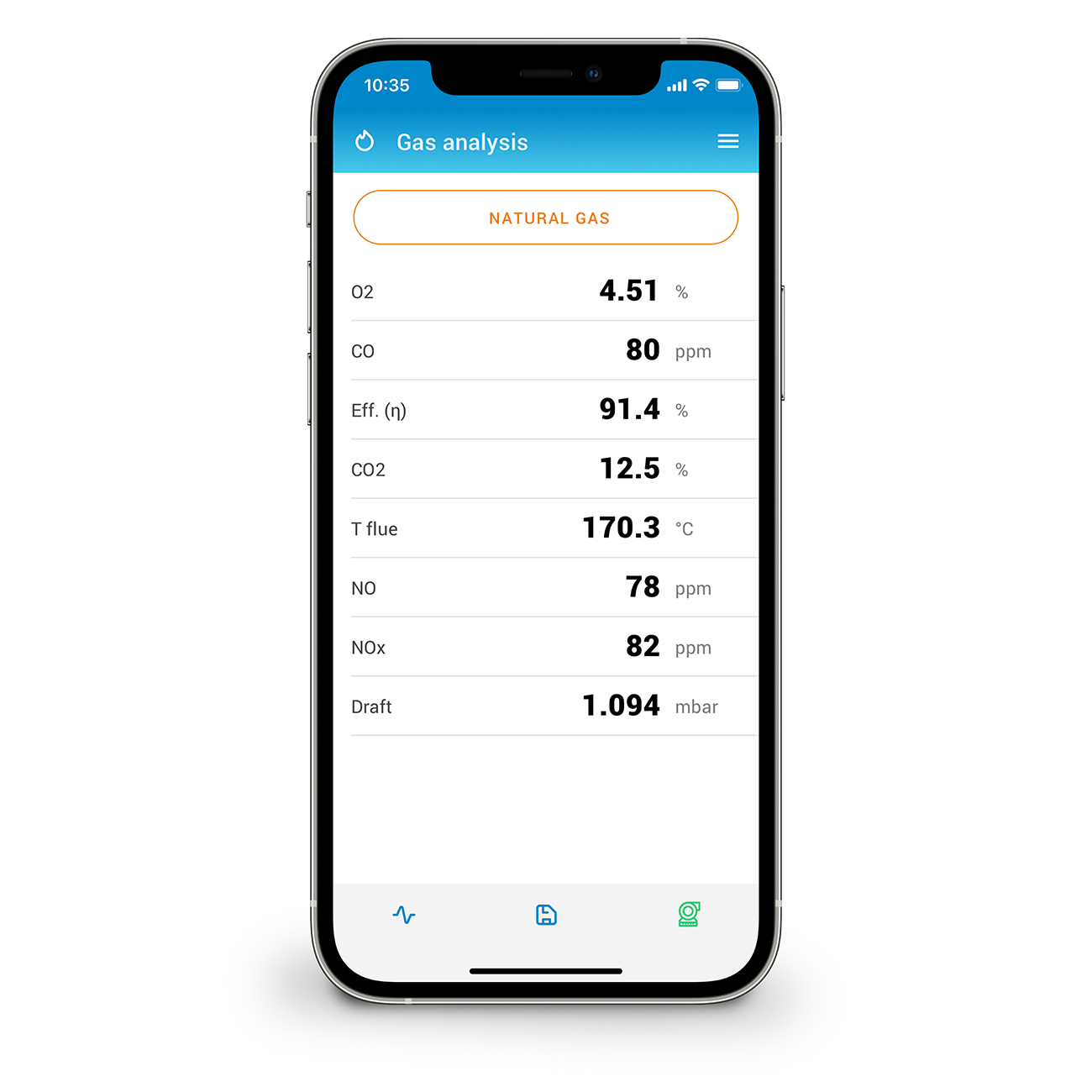

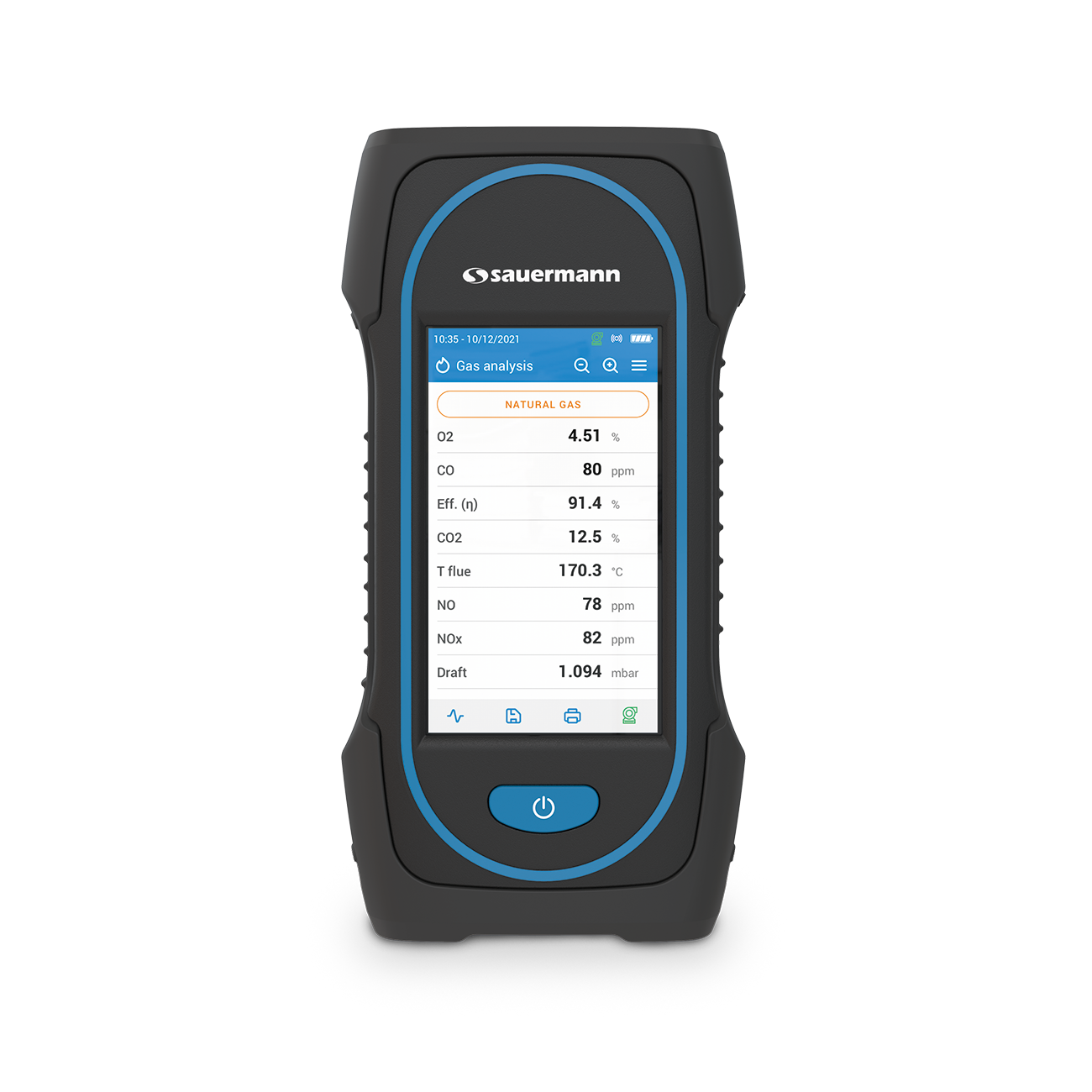

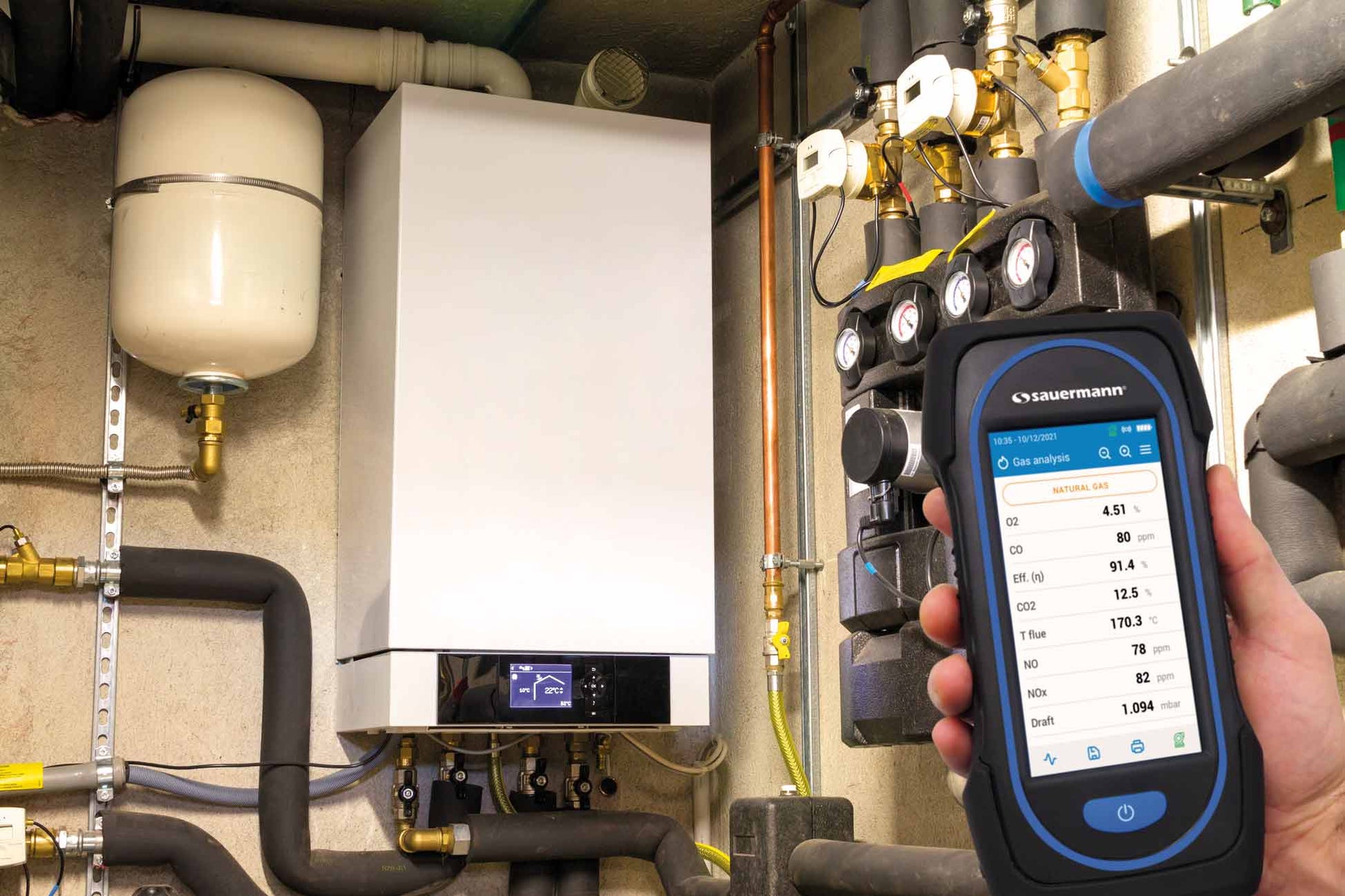

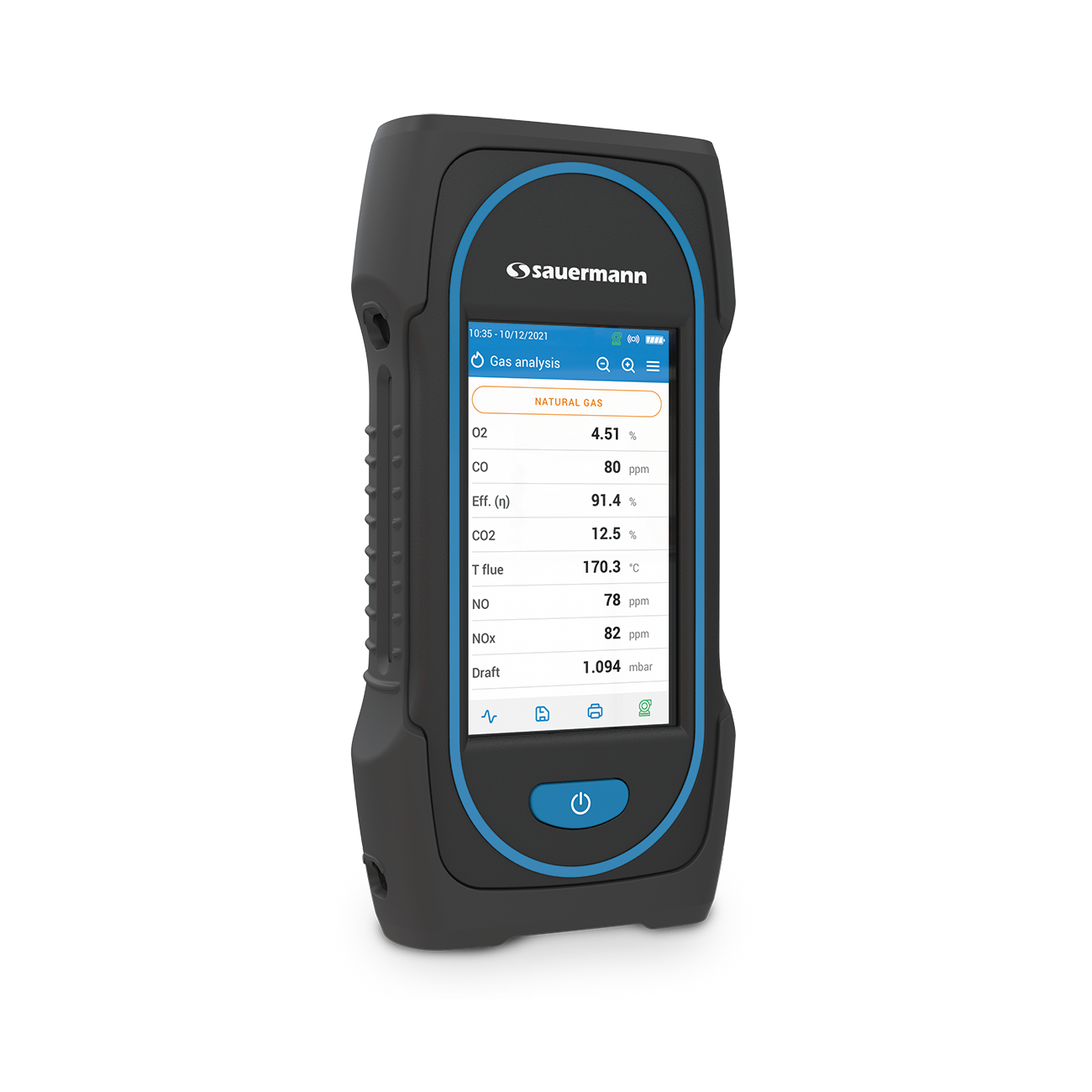

The Si-CA 130 is Sauermann's premium combustion gas analyser. Weighing only 350 g, it has a large, full-colour touch screen display and can connect wirelessly to a smartphone or tablet via Bluetooth to generate reports and certificates.
It can measure up to 8,000 ppm CO and has a user-adjustable auto pump cut-off for high CO levels. It also measures differential pressure and is designed for tightness tests.
The Si CA 130 FGA is able to estimate and display remaining sensor life. This means that during the annual calibration, there is no fixed year when the sensors need to be changed. They get changed when they reach end of life. The less you use your FGA, the longer the sensors will last.
Watch the Sauermann Si-CA 130 combustion gas analyser unboxing and review in-house
Annual calibration fees
Annual calibration fees
Warranty
Warranty
Specs
Specs
Si-CA 130 Product Specifications |
|
|---|---|
| Manufacturer's SKU | SICA 130 KIT 2AS |
| Measuring ranges | |
| O2 | 0.00 % ... 25.00 % |
| CO | 0.00 ppm ... 8000.00 ppm |
| CO2 | 0.00 % ... 99.90 % |
| NO (optional) | 0.00 ppm ... 5000.00 ppm |
| Flue temperature | -20.00 °C ... 1250.00 °C |
| Air temperature | -20.00 °C ... 120.00 °C |
| Differential temperature | 0.00 °C ... 1250.00 °C |
| Pressure/Draft | -200.00 mbar ... 200.00 mbar |
| Excess air | 0.00 % ... 999.00 % |
| Efficiency | 0.00 % ... 100.00 % |
| Efficiency (condensation) | 0.00 % ... 125.00 % |
| Stack Gas velocity | 0.00 m/s ... 99.00 m/s |
| Technical details | |
| Parameters | CO, CO₂, O₂, NO, NO₂ |
| Displays | Color graphical display |
| IP Protection | IP 42 |
| Battery life | 8 hours |
| Standards | 2015/863 EU (RoHS 3) |
| NF EN 50379-3 | |
| TÜV SÜD Certification | |
| UKCA | |
| NF EN 50379-1 | |
| 2014/53/EU RED | |
| Wireless connection | 1 |
| Power supply | Rechargeable battery, Li-Ion 5100 mA/h 3.6 V |
| USB | Yes |
| Sensors | CO, CO₂,O₂, NO, NOx |
| Auto zero | Yes |
| Printer | Remote |
| Sensor protection | Sensor protection by pump stopping |
| Mobile application | Yes |
| Instrument Dimensions | |
| Length | 99 mm |
| Width | 49 mm |
| Height | 194 mm |
| Weight | 350 g |
| Operating temperature | |
| Min | -5.00 °C |
| Max | 45.00 °C |
