Socket & See Electrical Testing Bundle

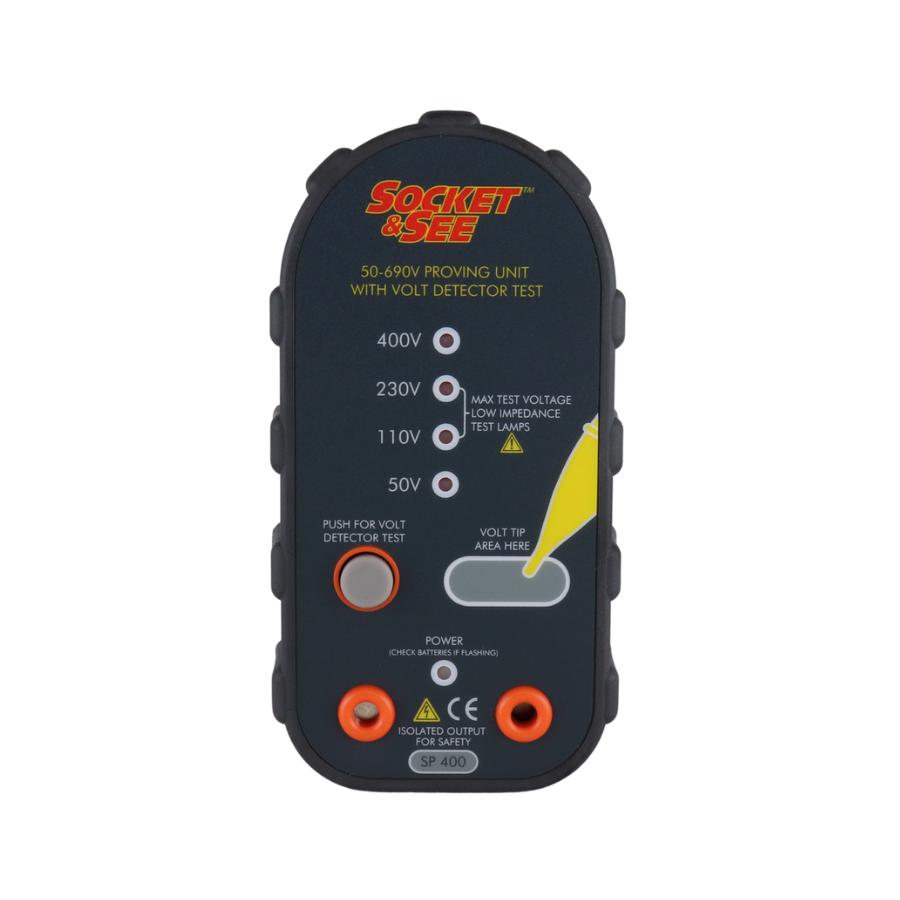

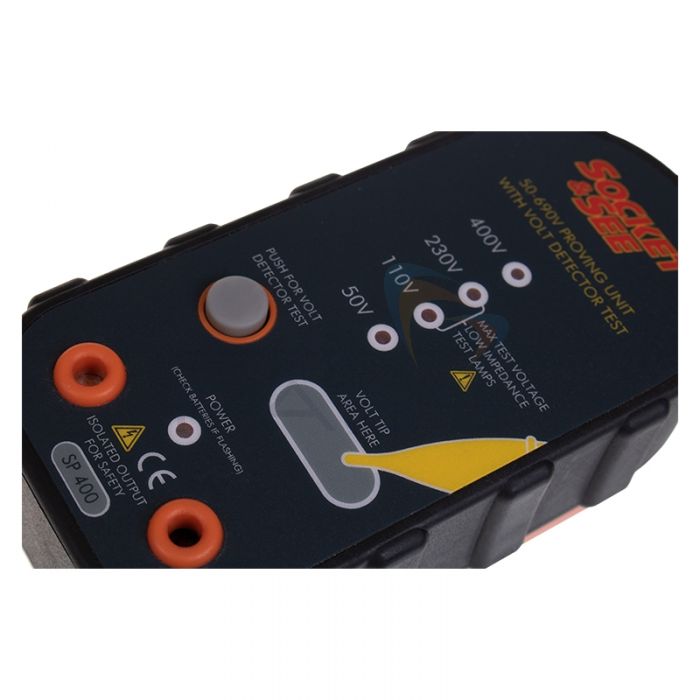

Socket & See SP400 Proving Unit

Provides a safe and reliable means of checking the correct functioning of Multimeters and two pole Voltage Indicators (VIs) before and after use as advised in the Working Practice for electricians.  Additionally they have the capability of checking the operation of Non-contact voltage detectors.

SP400 is a battery powered proving unit.

The SP400 will also test two-pole VIs that use small incandescent lamps to indicate that voltage is present.  SP400 has a unique and logical safety function – the test voltage generated is at 50Hz to synthesise a genuine test at AC mains supply frequency – so it will always read correct using the AC range of your Tester or Multimeter.

Key Features

• Intelligent voltage ramp for testing multimeters and Voltage Indicators
• Generates from 50-690V with a true AC waveform output
• Non-contact voltage indicator test feature
• Powerful enough to light old filament style test lamps
• Automatic operation and turn-off

Specifications

• Output voltage: 50 – 690V in five steps of 50V, 100V, 230V, 400V & 690V
• Power supply: 6x AA alkaline batteries
• Operating conditions: -10 to +35c at 95% RH, non-condensing
• Output frequency: 50Hz pseudo sine wave
• Maximum Output power: 10W
• Battery Life: 10 hours with average use when testing high and low powertesters
• Weight 346g
• Dimensions: 130mm (W) x 68mm (H) x 48mm (D)
• LVD: BSEN 61010-1 (2010)
• EMC: 61326-1 (2006)

What’s Included

• Socket & See SP400 Proving Unit
• Batteries

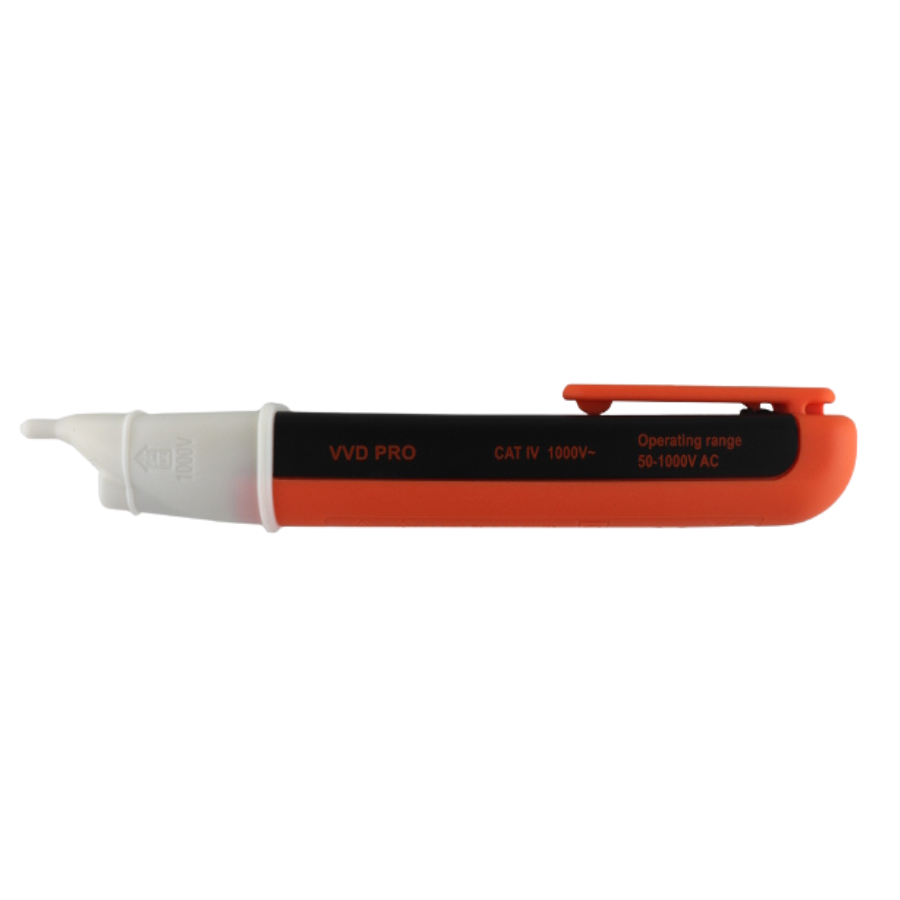

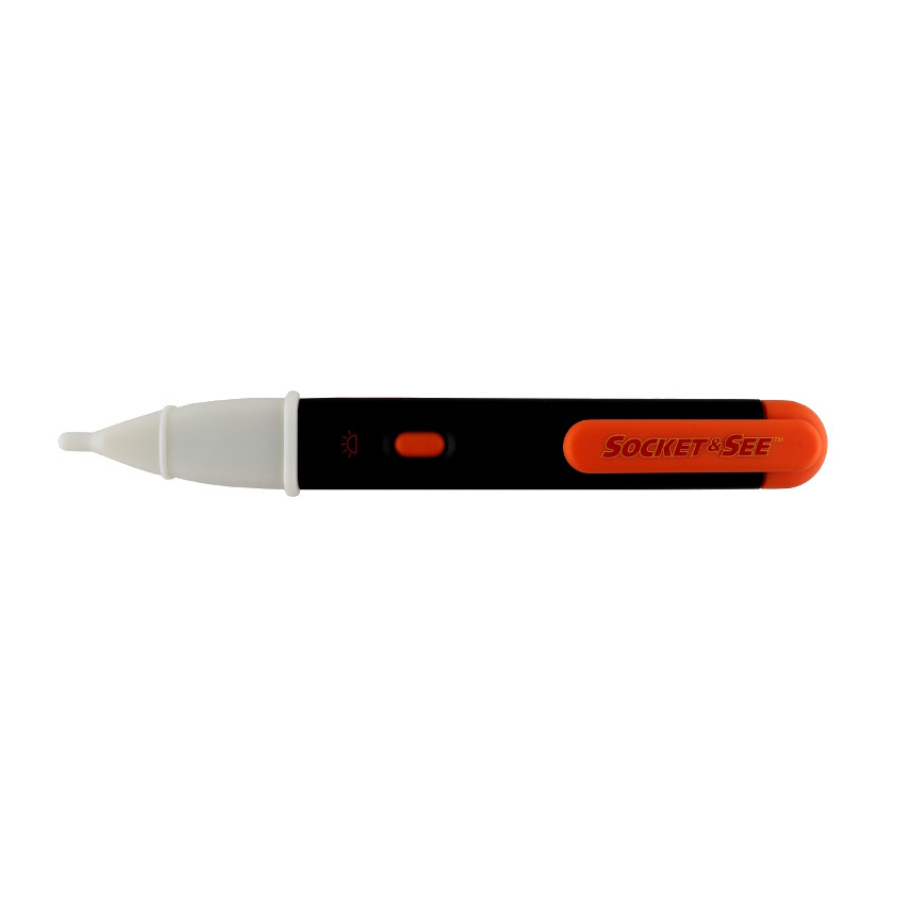

Socket & See VVD PRO Non Contact Voltage Detector

The Socket & See VVD Pro Non Contact Voltage Detector stands out as an indispensable tool for professionals working in environments where voltage detection is crucial. Its innovative design integrates both visual and physical alerts — a red flashing LED and a vibration feature — to indicate the presence of AC voltages ranging from 50 to 1000V. This dual-notification system proves especially beneficial in scenarios where poor lighting conditions or excessive noise might obscure traditional signals.

Weighing in at a mere 28 grams (without batteries) and with dimensions of 150 x 26 x 20 mm, the VVD Pro boasts a compact and robust build. Its lightweight and small size ensure it can be effortlessly carried in a pocket or tool bag, making it readily accessible on any job site. Additionally, the device is equipped with a bright LED flashlight, further enhancing its utility in poorly lit areas. Engineered to meet the rigorous demands of CAT IV use, the VVD Pro merges convenience with reliability.

Key Features

• Visual and physical voltage indication
• Detects 50 – 1000V AC
• Suitable for CAT IV applications
• Compact and lightweight design
• Equipped with a bright LED flashlight
• Vibrates to signal voltage presence
• Designed for ease of use in noisy or dim environments
• Robust construction for durability
• Operates effectively between -10ºC to 50ºC
• Maximum humidity tolerance of 80%

Technical Specifications

• Operating Voltage Range: 50 – 1000 VAC
• Operating Frequency Range: 50 – 60 Hz
• Temperature Range: -10ºC to 50ºC
• Humidity: 80% max
• Safety Standard: BSEN 61010
• Batteries Required: 2 x AAA
• Dimensions: 150 x 26 x 20 mm
• Weight (without batteries): 28 g

What’s Included

• Socket & See VVD Pro Non Contact Voltage Detector
• 2 x AAA Batteries
