Socket & See Safe Isolation Bundle

SKU:SOCKETANDSEE3

Free Delivery on orders over £100

£165.83

Sale Sold out

Quantity

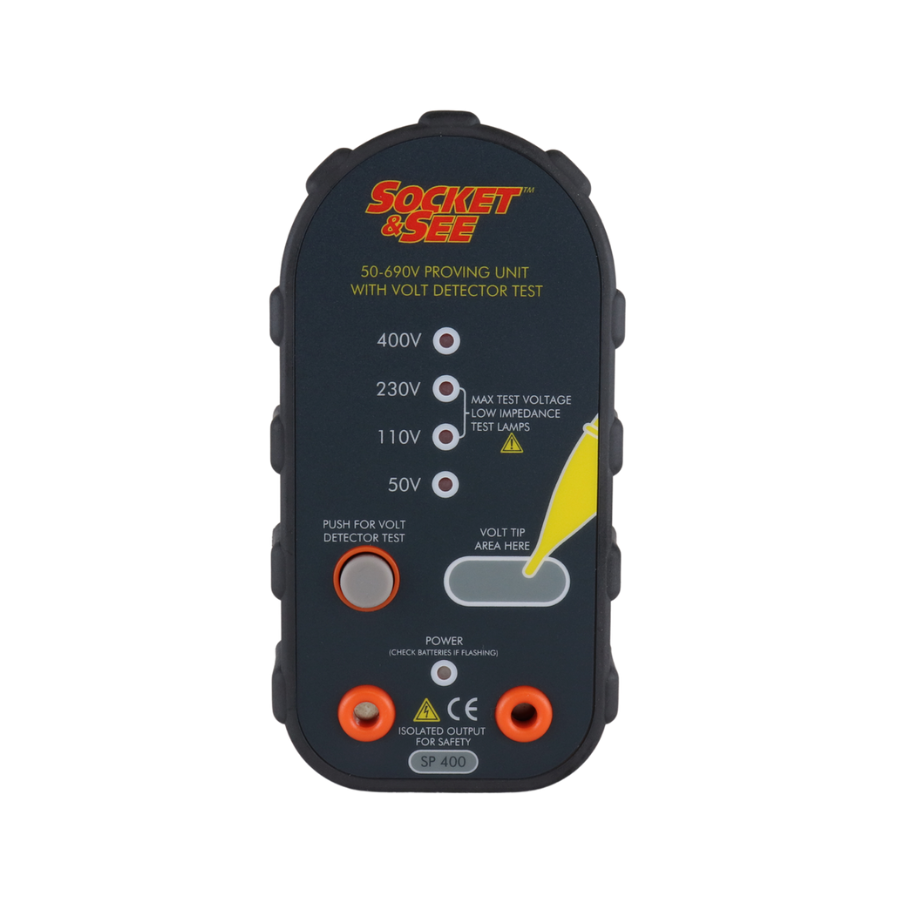

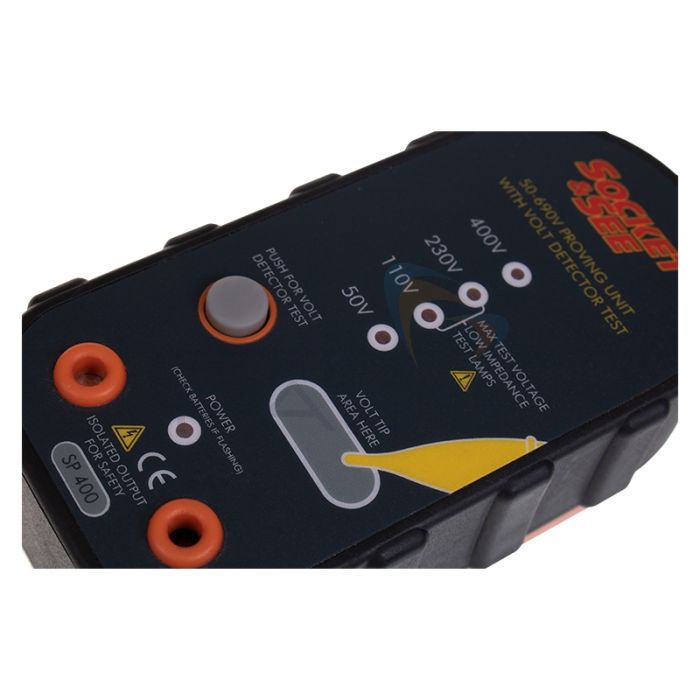

Socket & See SP400 Proving Unit

Provides a safe and reliable means of checking the correct functioning of Multimeters and two pole Voltage Indicators (VIs) before and after use as advised in the Working Practice for electricians. Additionally they have the capability of checking the operation of Non-contact voltage detectors.

SP400 is a battery powered proving unit.

The SP400 will also test two-pole VIs that use small incandescent lamps to indicate that voltage is present. SP400 has a unique and logical safety function – the test voltage generated is at 50Hz to synthesise a genuine test at AC mains supply frequency – so it will always read correct using the AC range of your Tester or Multimeter.

Key Features

Intelligent voltage ramp for testing multimeters and Voltage Indicators
Generates from 50-690V with a true AC waveform output
Non-contact voltage indicator test feature
Powerful enough to light old filament style test lamps
Automatic operation and turn-off

Specifications

Output voltage: 50 – 690V in five steps of 50V, 100V, 230V, 400V & 690V
Power supply: 6x AA alkaline batteries
Operating conditions: -10 to +35c at 95% RH, non-condensing
Output frequency: 50Hz pseudo sine wave
Maximum Output power: 10W
Battery Life: 10 hours with average use when testing high and low powertesters
Weight 346g
Dimensions: 130mm (W) x 68mm (H) x 48mm (D)
LVD: BSEN 61010-1 (2010)
EMC: 61326-1 (2006)

What’s Included

Socket & See SP400 Proving Unit
Batteries

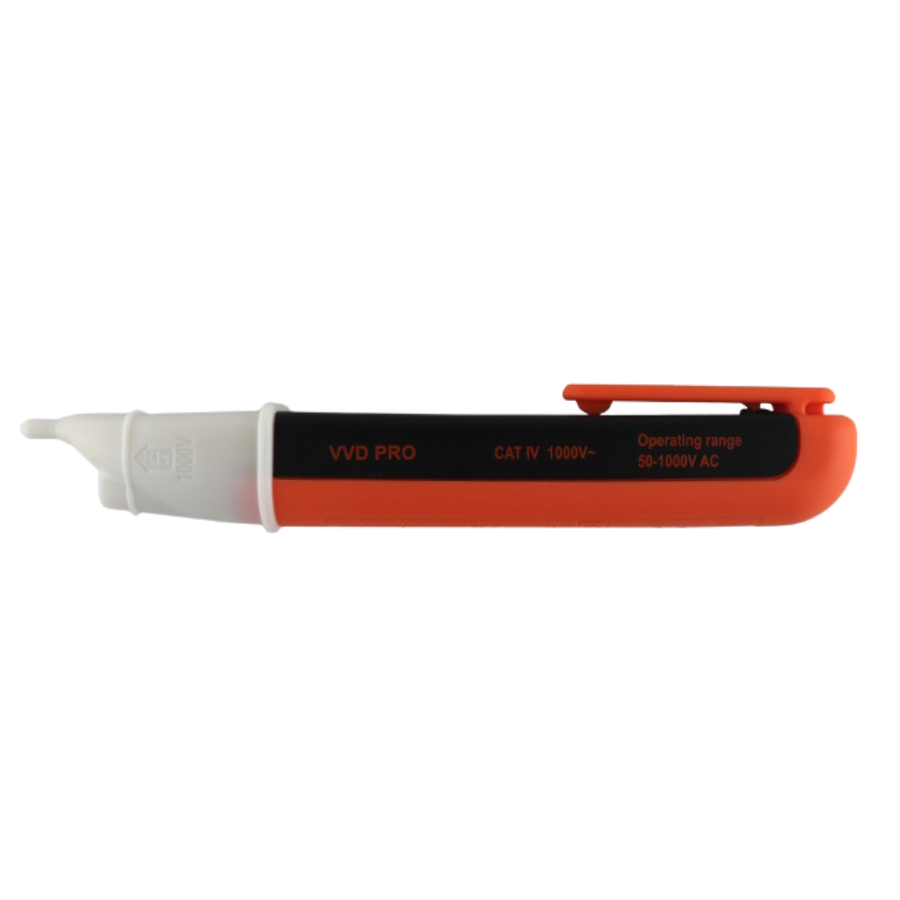

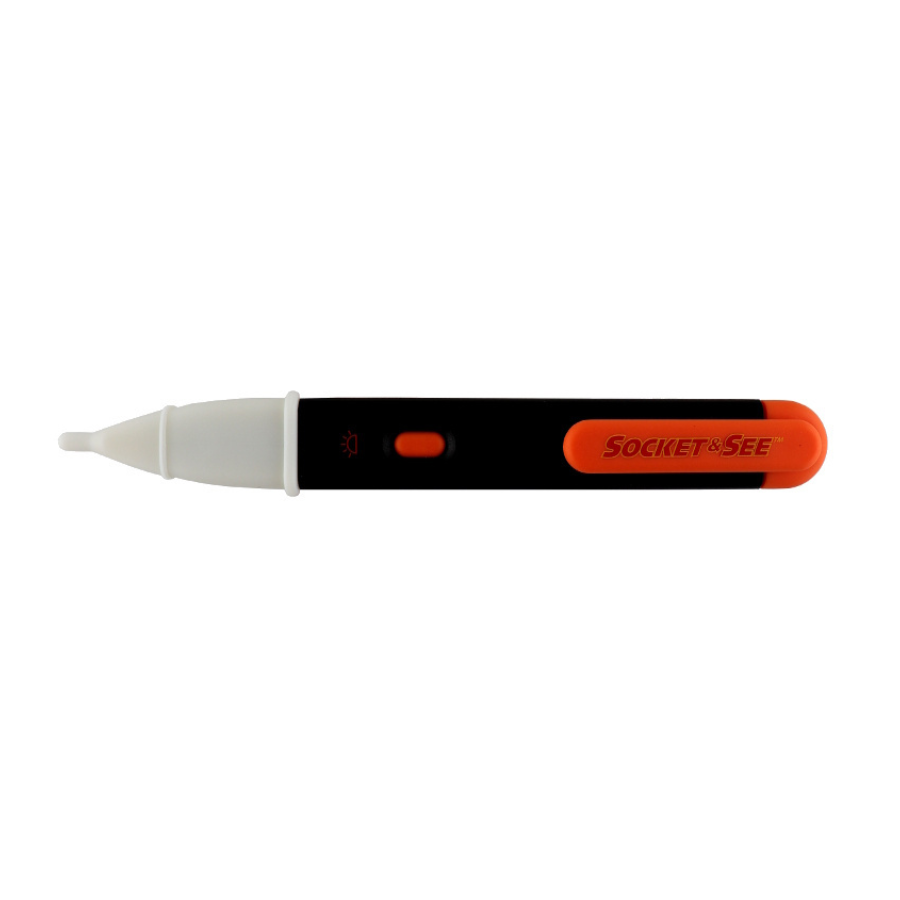

Socket & See VVD PRO Non Contact Voltage Detector

The Socket & See VVD Pro Non Contact Voltage Detector stands out as an indispensable tool for professionals working in environments where voltage detection is crucial. Its innovative design integrates both visual and physical alerts — a red flashing LED and a vibration feature — to indicate the presence of AC voltages ranging from 50 to 1000V. This dual-notification system proves especially beneficial in scenarios where poor lighting conditions or excessive noise might obscure traditional signals.

Weighing in at a mere 28 grams (without batteries) and with dimensions of 150 x 26 x 20 mm, the VVD Pro boasts a compact and robust build. Its lightweight and small size ensure it can be effortlessly carried in a pocket or tool bag, making it readily accessible on any job site. Additionally, the device is equipped with a bright LED flashlight, further enhancing its utility in poorly lit areas. Engineered to meet the rigorous demands of CAT IV use, the VVD Pro merges convenience with reliability.

Key Features

Visual and physical voltage indication
Detects 50 – 1000V AC
Suitable for CAT IV applications
Compact and lightweight design
Equipped with a bright LED flashlight
Vibrates to signal voltage presence
Designed for ease of use in noisy or dim environments
Robust construction for durability
Operates effectively between -10ºC to 50ºC
Maximum humidity tolerance of 80%

Technical Specifications

Operating Voltage Range: 50 – 1000 VAC
Operating Frequency Range: 50 – 60 Hz
Temperature Range: -10ºC to 50ºC
Humidity: 80% max
Safety Standard: BSEN 61010
Batteries Required: 2 x AAA
Dimensions: 150 x 26 x 20 mm
Weight (without batteries): 28 g

What’s Included

Socket & See VVD Pro Non Contact Voltage Detector
2 x AAA Batteries

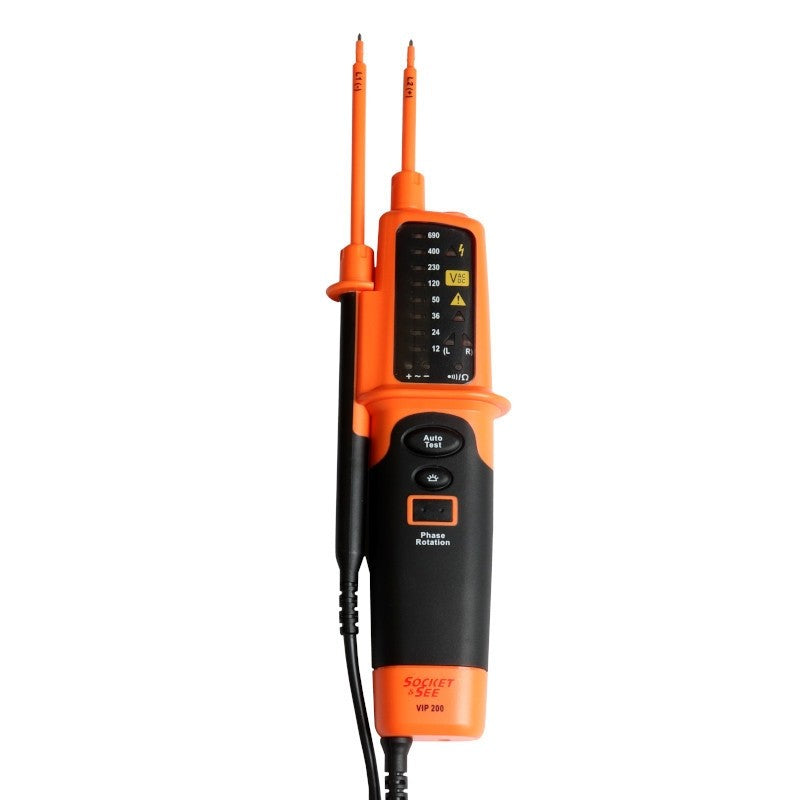

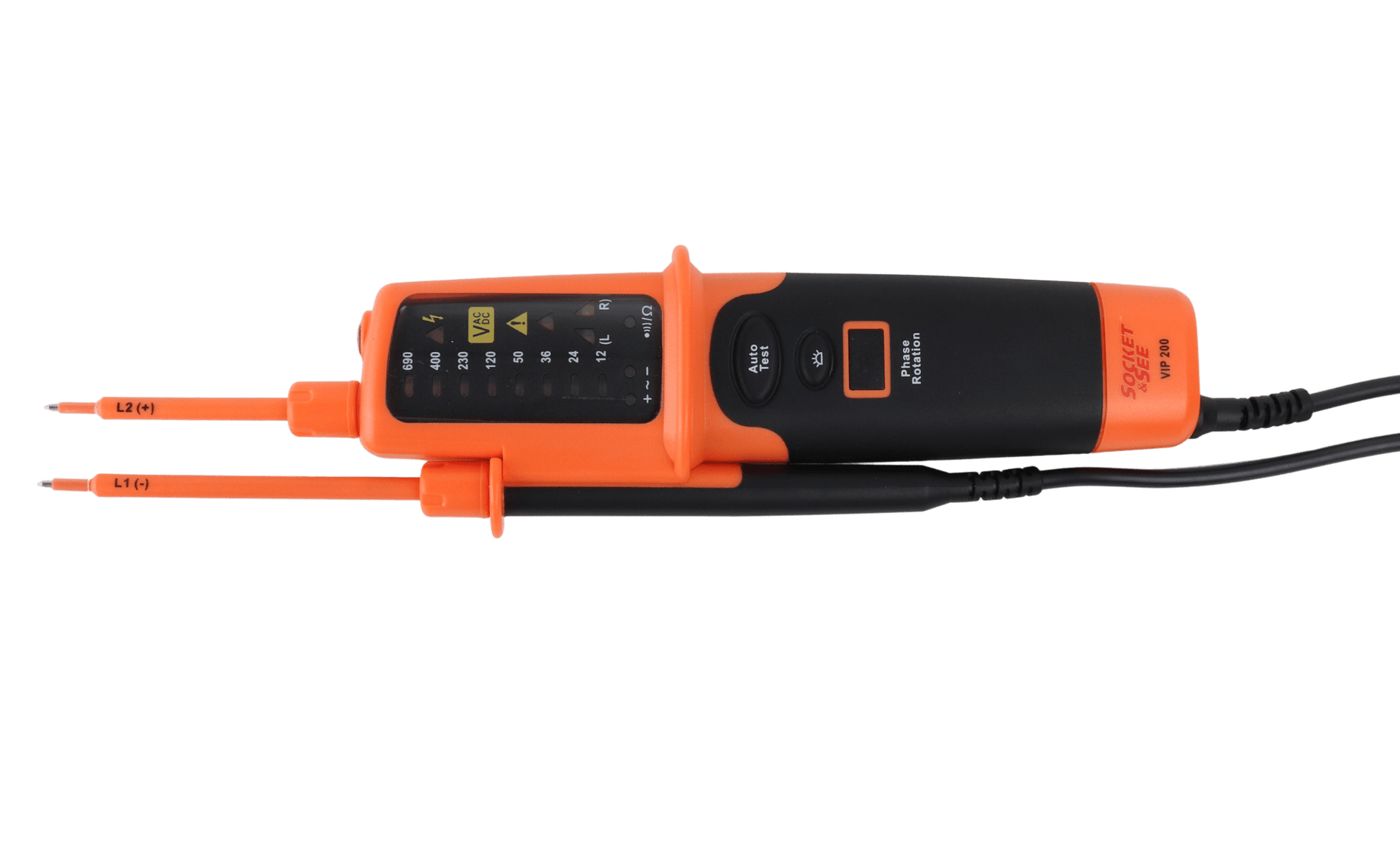

Socket & See VIP200 2-Pole Voltage Indicator

The Socket & See VIP200 stands as a versatile 2 pole voltage indicator, designed to cater to a range of testing requirements including continuity, phase rotation, and single pole testing. This advanced tool introduces an Auto Test function, enabling users to check the condition of batteries effortlessly, ensuring the device is always ready for use. Whether you need to indicate voltage with or without batteries, the VIP200 simplifies the process with its automatic AC/DC selection, making it an indispensable tool for professionals.

Advanced Features for Enhanced Testing

With the VIP200, performing a single pole voltage test is straightforward, requiring only that the batteries are installed and in good condition. It efficiently detects AC voltages starting from 100VAC, although specific conditions such as the use of personal protective equipment (PPE) may affect this capability. Additionally, the device boasts a user-friendly continuity test feature, lighting up an LED and emitting an audible tone when continuity is detected, alongside its capability to identify phase rotation within a three-phase system, offering comprehensive testing solutions in one compact tool.

Technical Excellence and Safety Standards

The VIP200 is designed with safety and durability in mind, featuring an over voltage category that supports a wide range of voltage indications and an IP54 rating, ensuring it is dust and splash-resistant. Compliance with GS38, IEC 61249-3, and 61010-1 safety standards, alongside its robust construction with a silicone rubber, dual-insulated interconnecting cable, guarantees reliability and safety in diverse operating conditions, from -10ºC to 55ºC and up to 85% RH.
