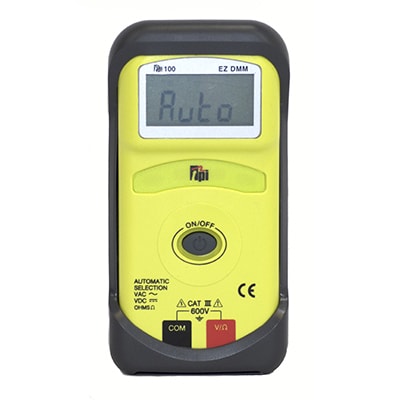

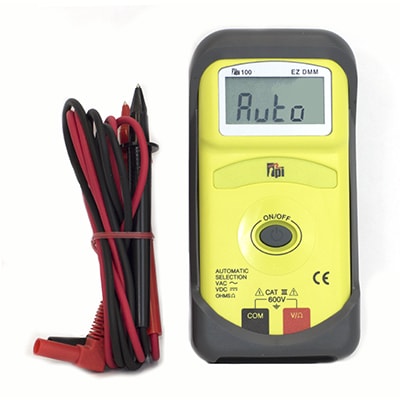

TPI 100 Auto-Ranging Digital Multimeter

TPI 100 Auto-Ranging Digital Multimeter

TPI100

  • Free Delivery on orders over £100
£41.66
£41.66
Sale Sold out

This multimeter has a single button to switch on and off and does everything else automatically for you. It measures voltage and resistance only.

No need anymore to select volts AC, DC or ohms and no need to try and guess the range. This digital multimeter does it all for you. It will select the function and the range so all you need to do is connect the test leads to the item under test.

Read more

Features

  • Single button operation
  • Automatically Measures AC 7 DC voltage and resistance
  • Automatically selects AC or DC volts
  • 0 to 600 Volts AC and DC
  • Up to 40MΩ measurement
  • Continuity testing: audible at less than 100Ω
  • Large 4,000 Count Display
  • 10M Ohm impedance
  • Auto Power Off After 10 Minutes
  • CAT II – 1000V, CAT III – 600V



This product comes supplied with:

  • 100 Instrument
  • Rubber Boot
  • Test Lead Set
  • Instruction Manual
  • 1.5V Battery



Warranty

3 year(s)

Specs

Model 100 Specifications
DC Volts Maximum Input: 600V (Minimum Input = 1.5V)


Maximum Resolution: 0.001V

Accuracy: +/-0.5%
AC Volts Maximum Input: 600V (Minimum Input = 1.7V)


Maximum Resolution: 0.1V

Accuracy: +/-0.8%
DC Amps N/A
AC Amps N/A
Resistance (Ohms) Maximum Input: 40MΩ


Maximum Resolution: 0.1Ω

Accuracy: +/-0.8%
Frequency N/A
Capacitance N/A
Inductance N/A
Temperature


(K-Type Thermocouple)		 N/A
Continuity Audible at less than 100Ω
Diode N/A
Duty Cycle N/A
True RMS Responding No
Conductance No
Pulse Width No
Data Hold No
Min/Max Record No
Time Stamp Logging No
Relative Mode No
Compare Mode No
RS-232 Output No
Process Loop Output No
Sleep Mode / Auto Off No
Protective Boot Yes (standard)
Display Type 4000 count LCD
Range Selection Auto including function selection
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 14°F to 122°F (-10°C to 50°C)
Humidity 80% non-condensing
Size 6” x 3.1” x 1.2” (187mm x 86mm x 33mm) with boot
Weight 12oz (340g) with boot
Battery Type 1.5V “AA” Alkaline (2)
Battery Life 500hrs Typical
OverInput Category CAT III 600V
Agency Approval IEC 61010-1
Warranty 3 Years
