TPI 709R Combustion Gas Analyser
TPI 709R Combustion Gas Analyser
SKU:TPI709R-KIT
- Free Delivery on orders over £100
Regular price
£374.17
Regular price
Sale price
£374.17
Unit price
/
per
Couldn't load pickup availability

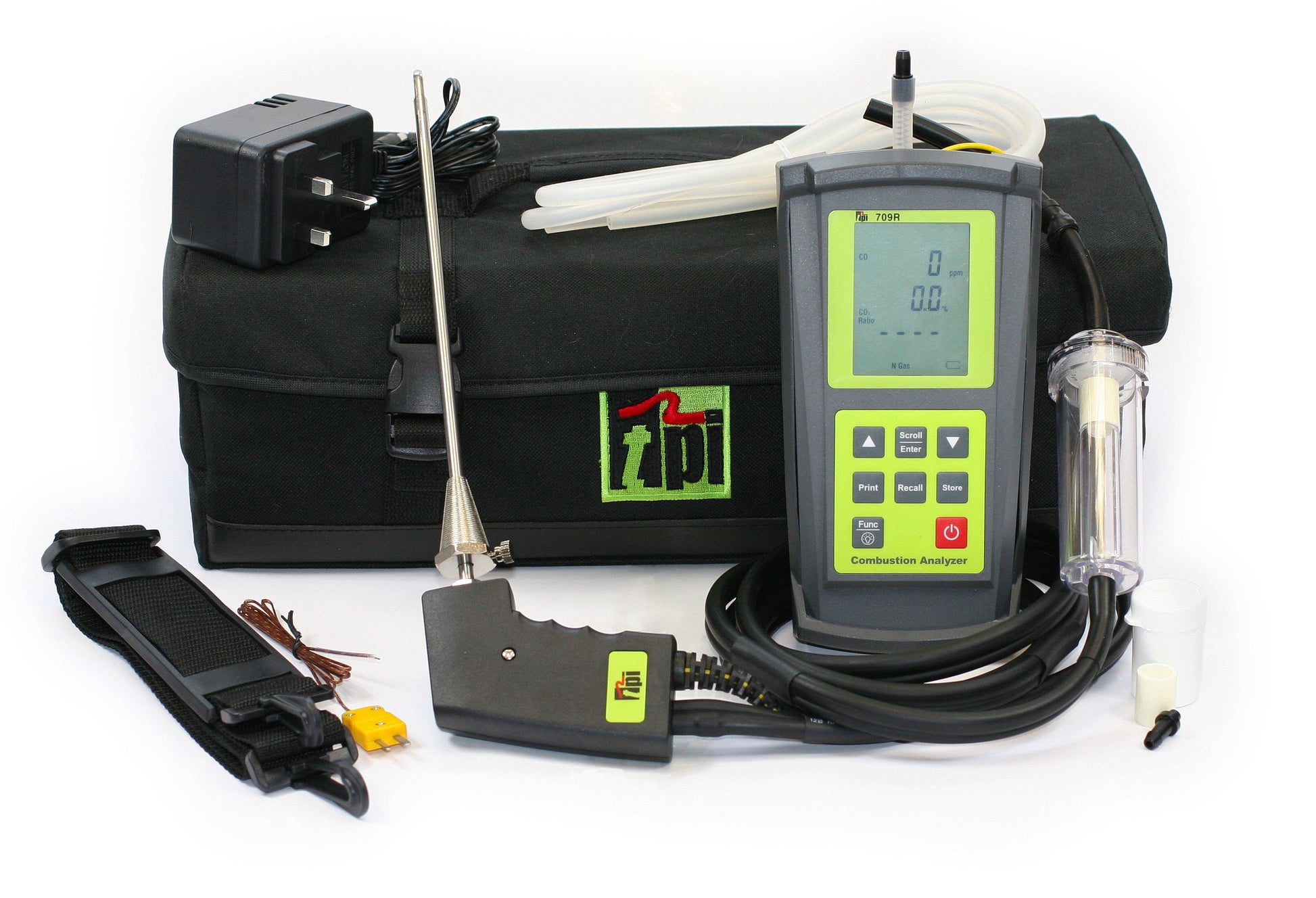

All kit options include:
- 709R combustion gas analyser with screen
- temperature sampling probe with water trap
- soft carry case with shoulder strap
- rechargeable battery pack & charger
- pressure adaptors
- ambient air probe
- pressure hoses (2 x 1 metre)
- spare particle filter
- instruction manual.
Claim your free TPI gas sniffer worth £54 with any TPI analyser kit you buy. More details on the gas sniffer page.
Read more
Read more

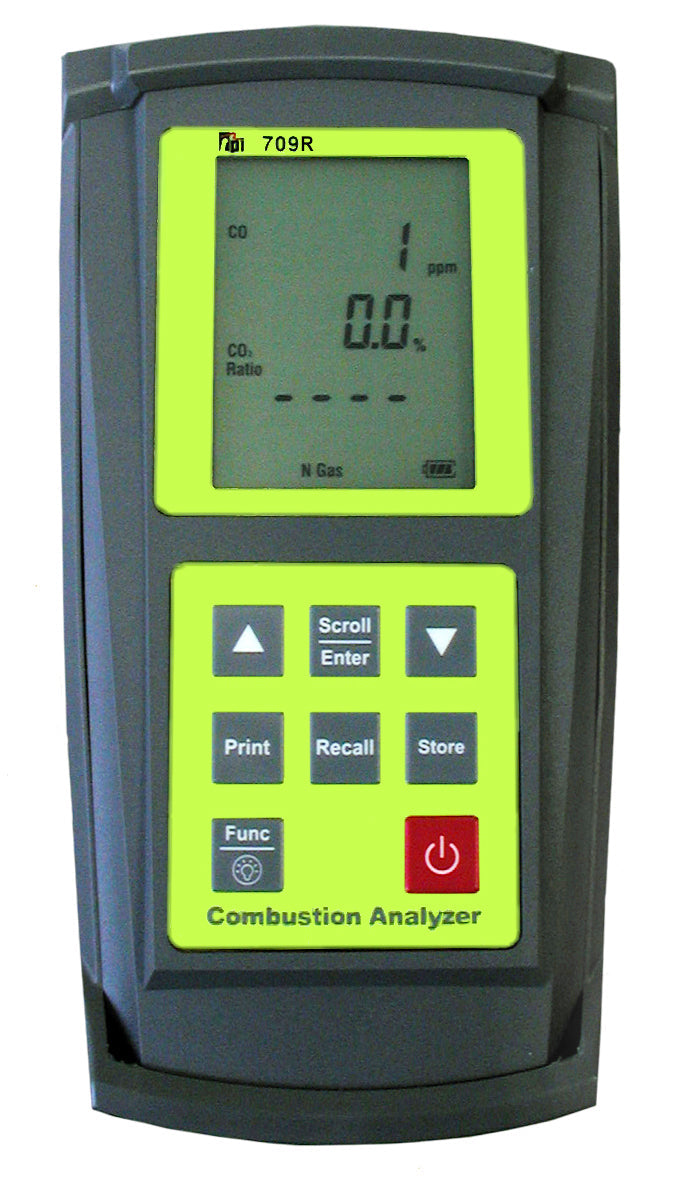

The TPI 709R flue gas analyser is the ideal instrument for boiler commissioning and servicing. It will measure flue gases, flow & return temperatures and pressure which makes it suitable for tightness tests.
The large backlit display is easy to read and the menu simple to navigate.
It is H2-ready and will measure CO, O2, temperature, pressure and calculate CO2 (in a flue), CO/CO2 ratio, efficiency and excess air.
Annual calibration fees
Annual calibration fees
£114 including return carriage when sent to TPI. Fees for year 6 and 12 are £234 including return carriage.
Warranty
Warranty
6 year(s)
Specs
Specs
709R Product Specifications |
|||
|---|---|---|---|
| Instrument | |||
| Manufacturer's SKU | 709R-KIT | ||
| Operating Temperature Range | -10°C to +50°C | ||
| Battery / Batery Life | Rechargeable Ni-MH / > 6 Hours | ||
| Charger Input Voltage | 115V or 230V : 50/60 Hz AC | ||
| Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse | ||
| Pressure Range | – 150 mbar to + 150 mbar | ||
| Display | Backlit Graphic LCD | ||
| Data Storage | 50 sets of readings, multiple pages | ||
| Time and Date | 24 Hour Real Time Clock | ||
| Dimensions | 7.8” (200mm) x 3.5” (90mm) x 2.4” (60mm) | ||
| Weight | 500g | ||
| Casing | Rubber Boot as Standard | ||
| Switch Off | Failsafe | ||
| Exhaust | Safety Spigot | ||
| Conforms to | EN50379 | ||
| Flue Temperature Probe | |||
| Construction | Pistol Grip with Stainless Steel Shaft | ||
| Hose Length | 8.2’ (2500mm) | ||
| Insertion Length | 7.9” (200mm) | ||
| ‘K’ Type Thermocouple Accuracy | +/- 0.3% of fullscale, +/- 1°C | ||
| Maximum Temperature | 800°C | ||
| Gases | Range | Resolution | Accuracy |
| Oxygen | 0-25% | 0.1% | +/- 0.3% |
| Carbon Monoxide | 0-10,000 ppm | 1 ppm | (<20ppm) +/- 3 ppm (>=100ppm) +/- 5% |
| Carbon Dioxide (calculated) | 0-25% | 0.1% | Calculated |
| CO/CO2 Ratio | 0-0.999 | 0.001 | +/- 0.3% |
| Combustion Efficiency | 0-100% | 0.1% | |
| Pressure Measurement | |||
| Selectable Units | mbar, kPa and inH2O | ||
| Range | – 150 mbar to + 150 mbar | ||
| Resolution | 0.01 mbar & 0.1 mbar | ||
