Vaillant EcoFIT Pure Boiler Package With Horizontal Flue & Advance Filter
Vaillant EcoFIT Pure Boiler Package With Horizontal Flue & Advance Filter
SKU:ZAP93831
- £25 delivery (excl VAT) or free pickup in store
Regular price
£1,082.50
Regular price
Sale price
£1,082.50
Unit price
/
per
Couldn't load pickup availability
About this product

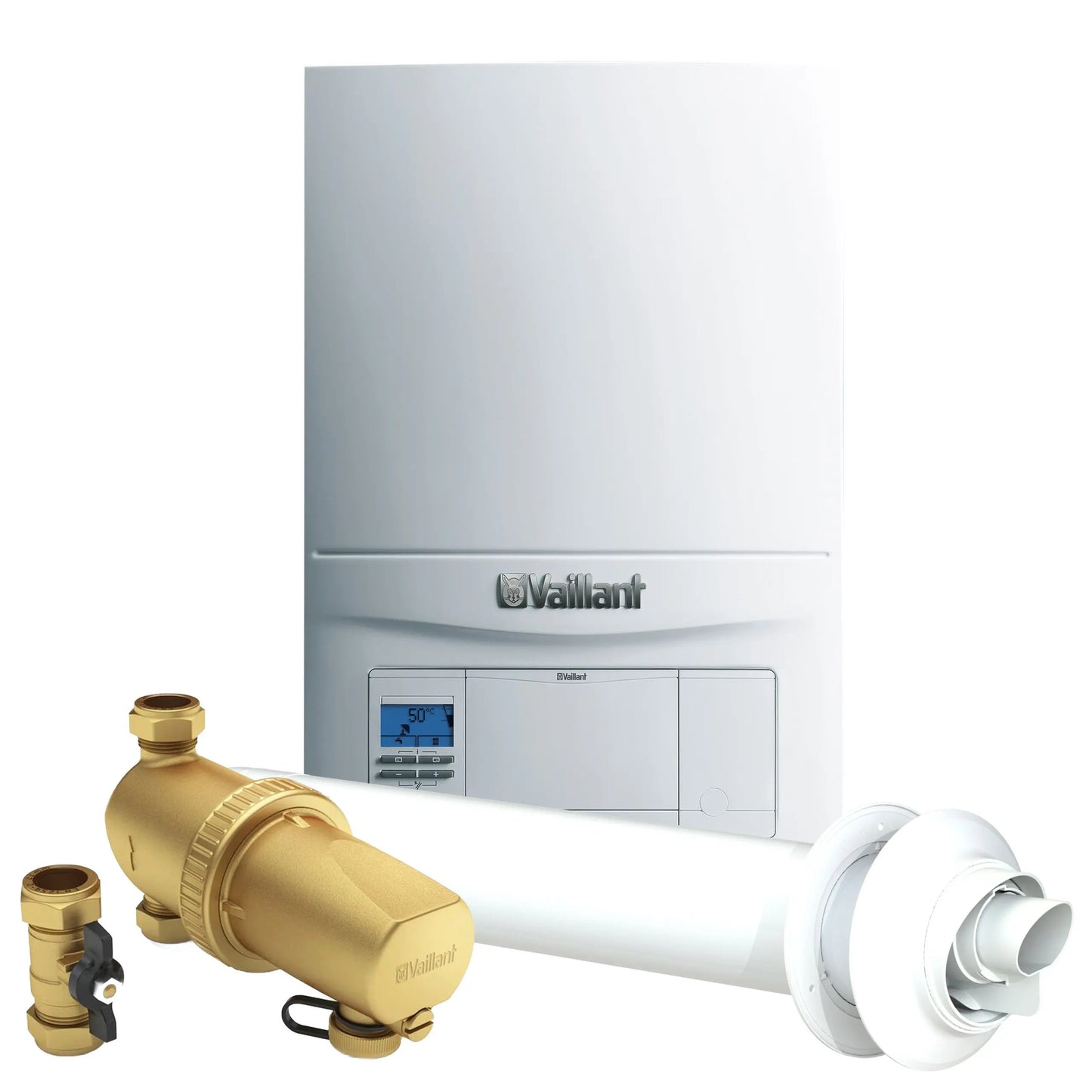

Vaillant ecoFIT 825, 830 and 835 Restart Pack consists of:

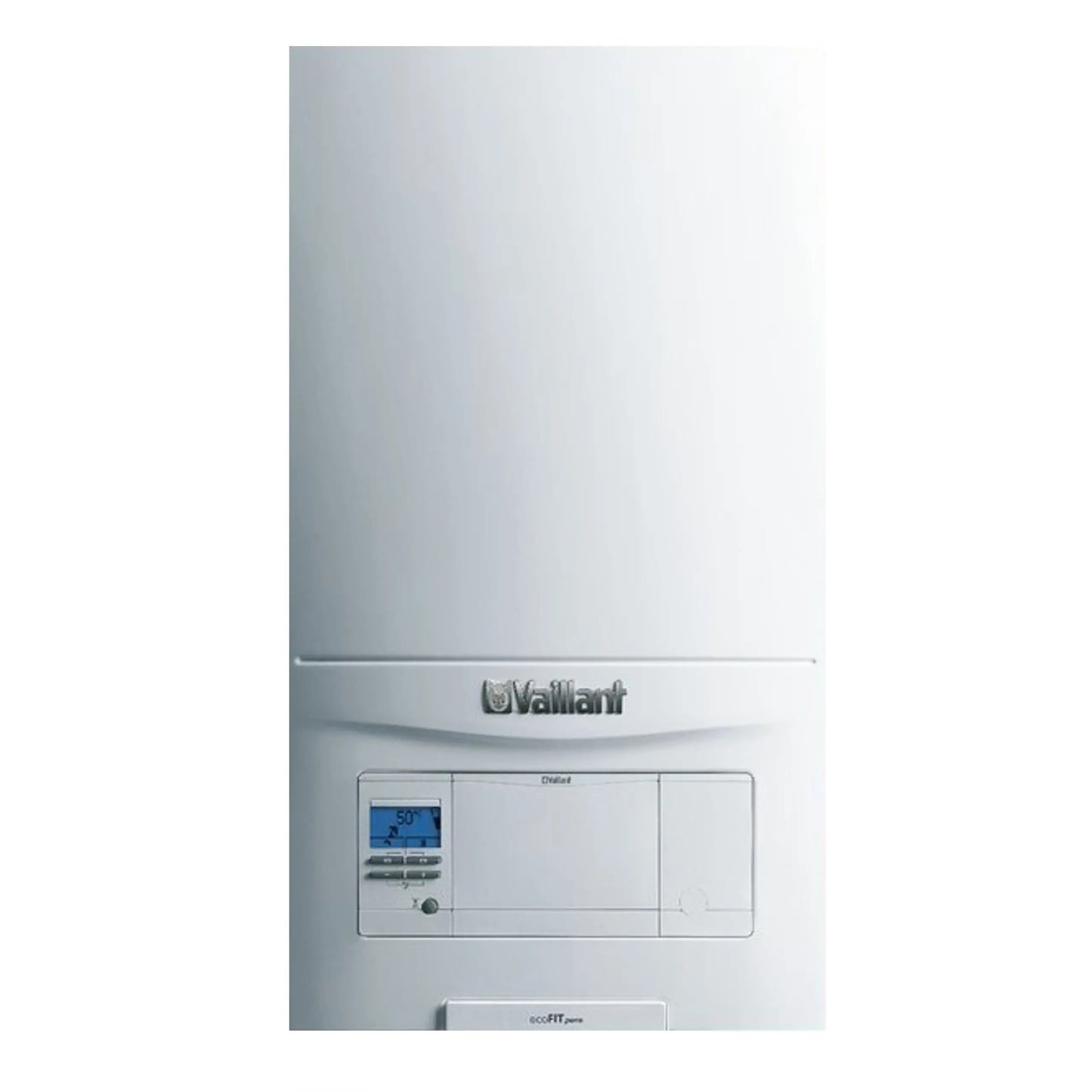

- Vaillant ecoFIT Pure combi boiler

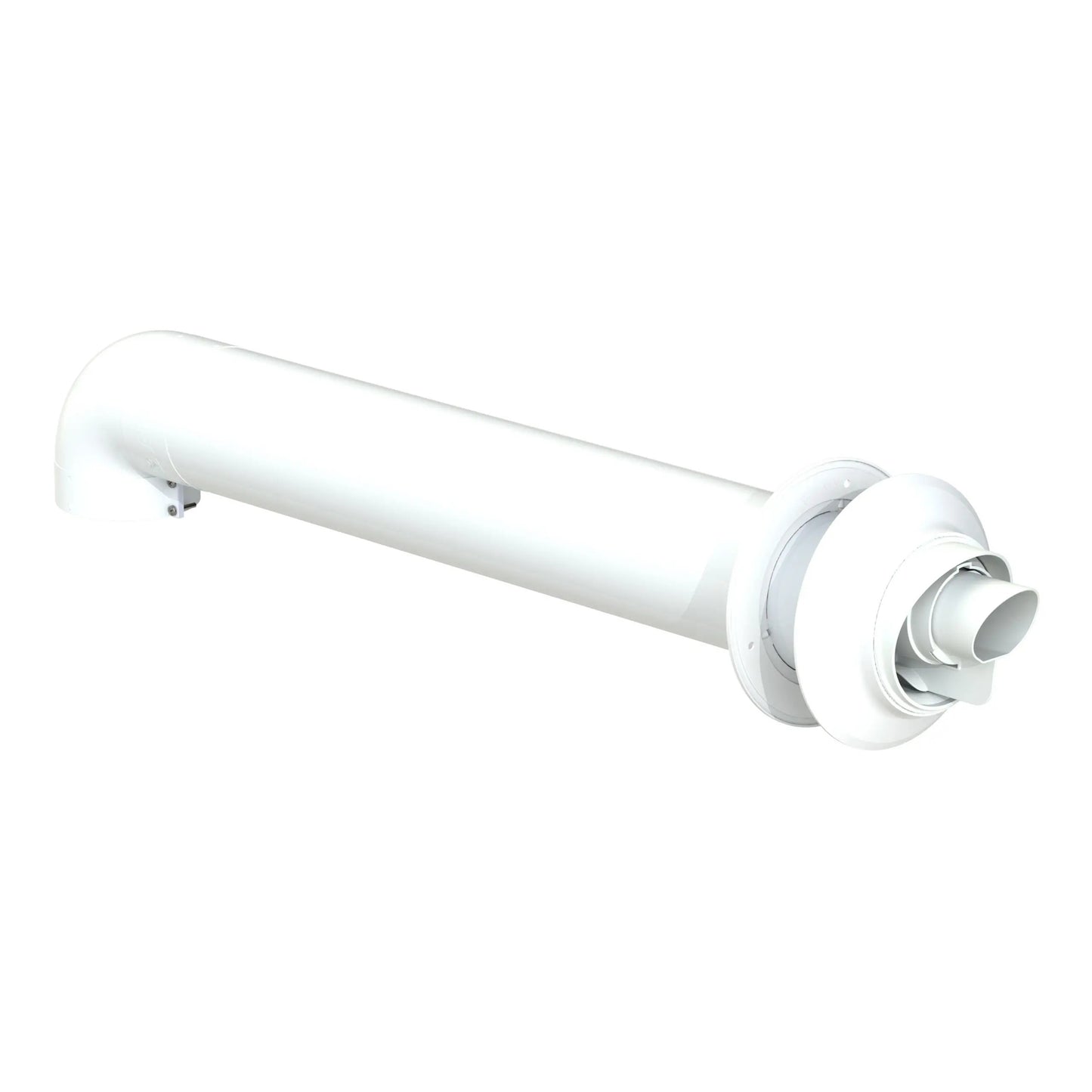

- Horizontal flue

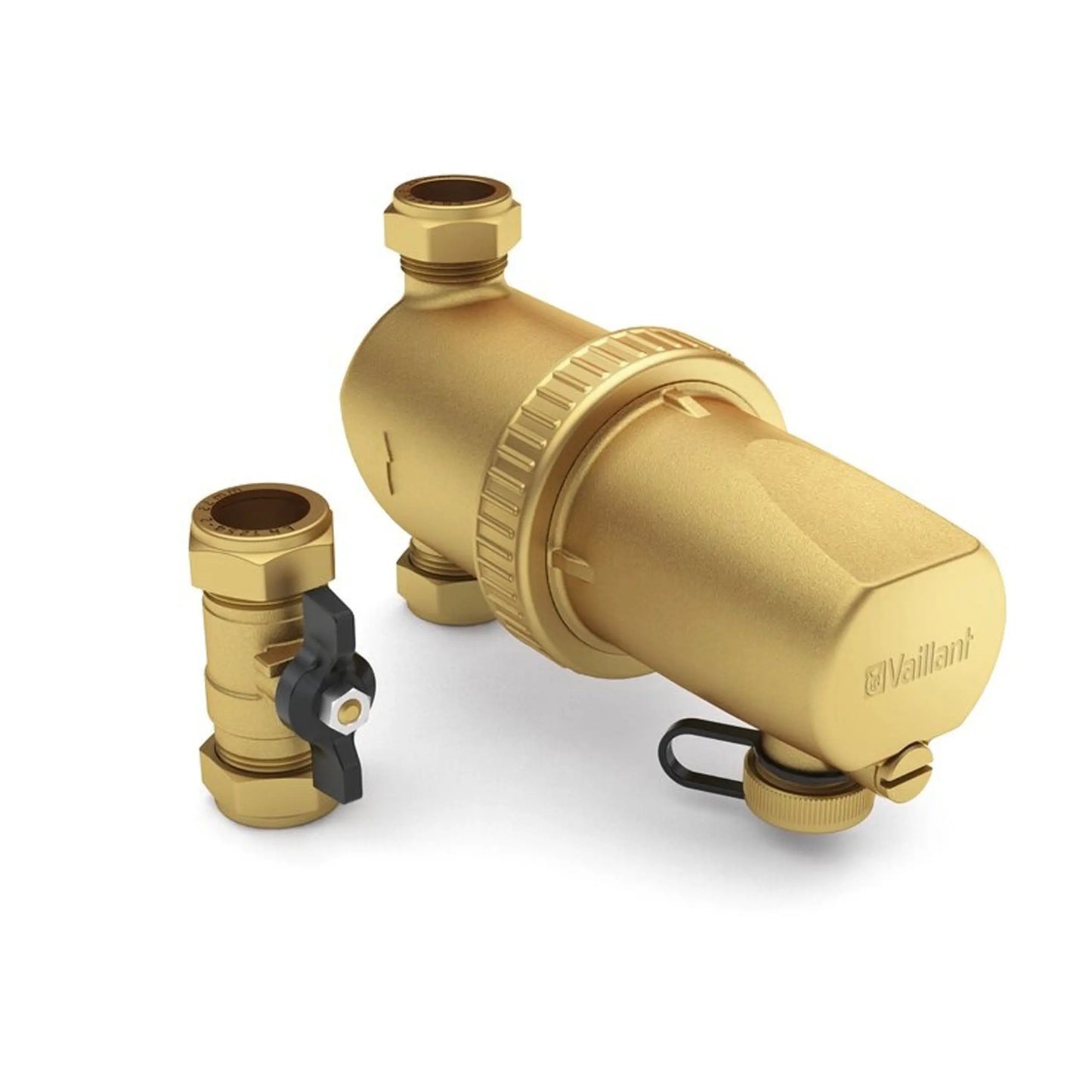

- Vaillant Advance filter
Read more
Read more
Vaillant's compact and ultra-quiet operation (Quiet Mark-approved) combination boiler range, the ecoFIT Pure 825, 830 and 835 combi boiler has a small footprint and total flexibility of siting mean that the ecoFIT Pure range fits in with your customers’ needs.
Key features
- High efficiency pump for reduced energy consumption and lower standby losses
- Attractive case with improved aesthetics
- Complete with horizontal flue & advance filter
- 2 year out the box guarantee upgradeable to 10 years
- Automotive grade aluminium heat exchanger

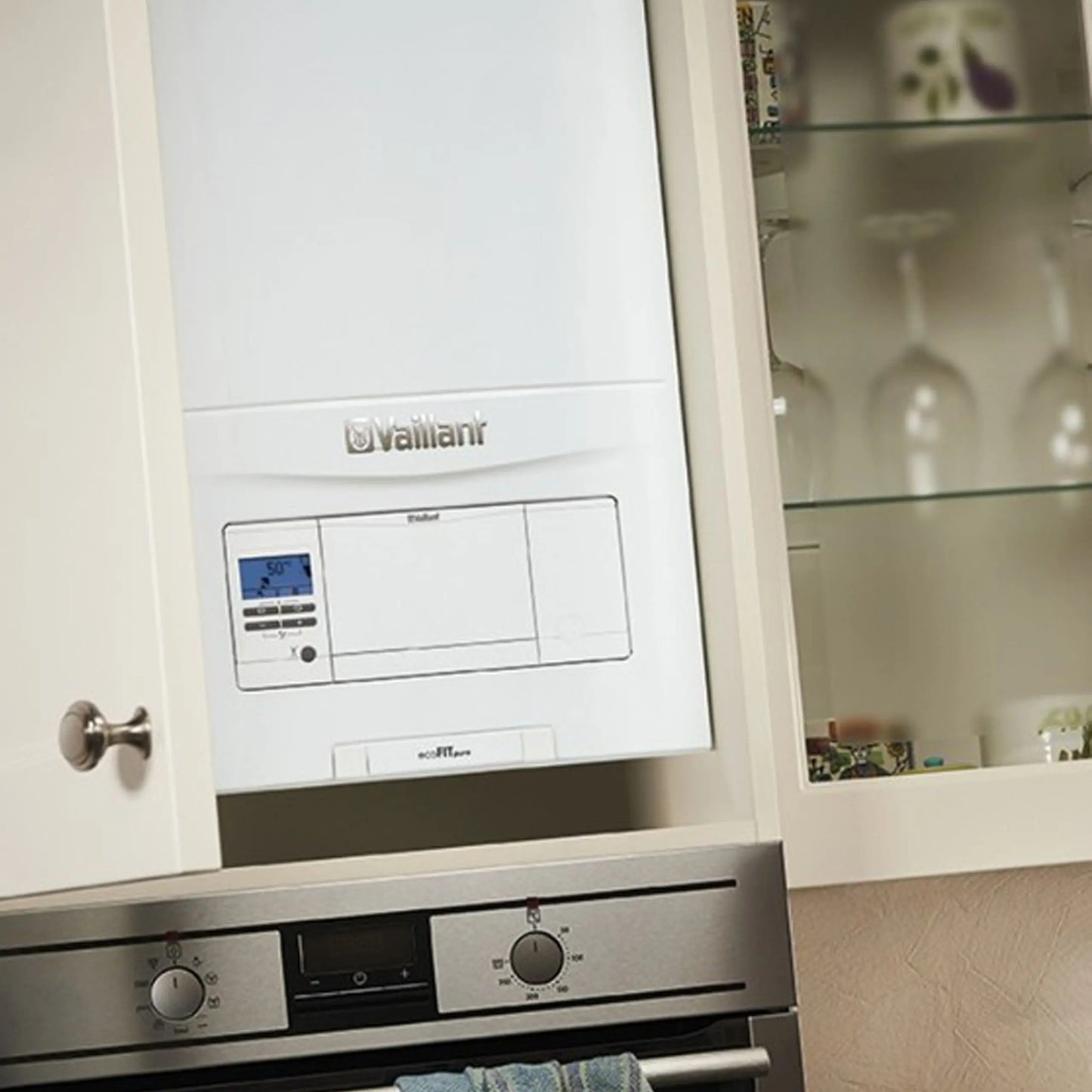

- Cupboard fit
- High-quality components
- Clear LED display
Warranty
Warranty
10 year(s)
Specs
Specs
| Technical Data | Unit | 25 kW | 30 kW | 35 kW |
|---|---|---|---|---|
| General | ||||
| Boiler type | combi | combi | combi | |
| Signature model output | 25kW | 30kW | 35kW | |
| Article number | 0010020389 | 0010020390 | 0010020391 | |
| Gas Council number | 47-044-68 | 47-044-74 | 47-044-70 | |
| Boiler Dimensions | mm | 700 x 390 x 295 | 700 x 390 x 295 | 700 x 390 x 295 |
| Heating | ||||
| Nominal heat output range at 50/30˚C (Condensing mode) | kW | 5.3 - 19.1 | 6.3 - 26.5 | 7.5 - 26.7 |
| Nominal heat output range at 80/60˚C (Non condensing mode) | kW | 5 - 18.3 | 6.1 - 25.4 | 7.2 - 25.6 |
| Maximum flow temperature | ˚C | 80 | 80 | 80 |
| Flow temperature range | ˚C | 10 - 80 | 10 - 80 | 10 - 80 |
| Flow temperature factory setting | ˚C | 75 | 75 | 75 |
| Approximate condensate volume at 50/30˚C | litres/hr | 1.84 | 2.55 | 2.57 |
| Modulation (max/min) | 1 : X | 1:5 | 1:4.9 | 1:4.9 |
| Domestic Hot Water | ||||
| Maximum heat output for water generation | kW | 25.2 | 30 | 35 |
| Lowest water pressure to operate boiler | bar | 0.3 | 0.3 | 0.3 |
| Lowest water flow for operation | l/min | 2.0 | 2.0 | 2.0 |
| Lowest water pressure for maximum flow rate | bar | 2 | 2 | 2 |
| Domestic hot water flow rate (at DT = Δ35K) * | l/min | 10.4 | 12.2 | 14.1 |
| Hot water output temperature range | ˚C | 35 - 60 | 35 - 60 | 35 - 60 |
| Mechanical | ||||
| Expansion vessel size | litres | 8 | 8 | 8 |
| Gas inlet connection (pipe size) | mm | 15 | 15 | 15 |
| Heating flow and return connections (pipe size) | mm | 22 | 22 | 22 |
| Hot and cold water connections (pipe size) | mm | 15 | 15 | 15 |
| Heat exchanger material | Aluminium | Aluminium | Aluminium | |
| Boiler lift weight (Dry boiler) | kg | 32 | 33 | 33 |
| Performance | ||||
| NOx class | 5 | 5 | 5 | |
| NOx (En 15502-2-1) | mg/kWh | 39 | 39 | 39 |
| ErP efficiency | % | 94 | 94 | 94 |
| ErP decibel rating (sound power) | dBa | 49 | 51 | 52 |
| Fluing options | ||||
| Maximum horizontal flue length 60/100 | m | 10 | 10 | 10 |
| Maximum vertical flue length 60/100 | m | 10 | 10 | 10 |
| Maximum horizontal flue length 80/125 | m | 25 | 25 | 25 |
| Maximum vertical flue length 80/125 | m | 25 | 25 | 25 |
| Rear flue options | Yes | Yes | Yes | |
